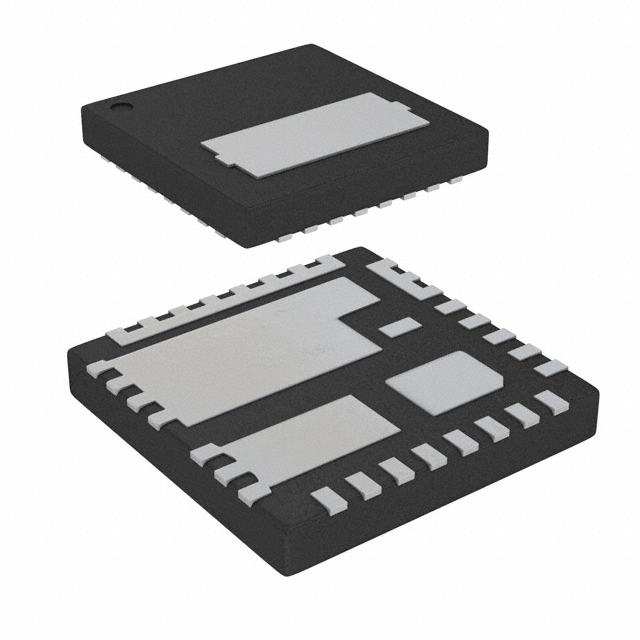

FDMF5826DC
IC HALF BRIDGE DRIVER 60A 31PQFNManufacturer: Fairchild Semiconductor
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
Additional Information
Series: PowerTrench®, SyncFET™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit, Latch Function, Status Flag |
| Packaging | Bulk |
| Package / Case | 31-PowerWFQFN |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 4.5V ~ 5.5V |
| Rds On (Typ) | 470mOhm LS, 680mOhm HS |
| Applications | Synchronous Buck Converters |
| Current - Output / Channel | 60A |
| Current - Peak Output | - |
| Technology | UMOS |
| Voltage - Load | 4.5V ~ 16V |
| Supplier Device Package | 31-PQFN (5x5) |
| Fault Protection | Over Temperature, UVLO |
| Load Type | Inductive |
