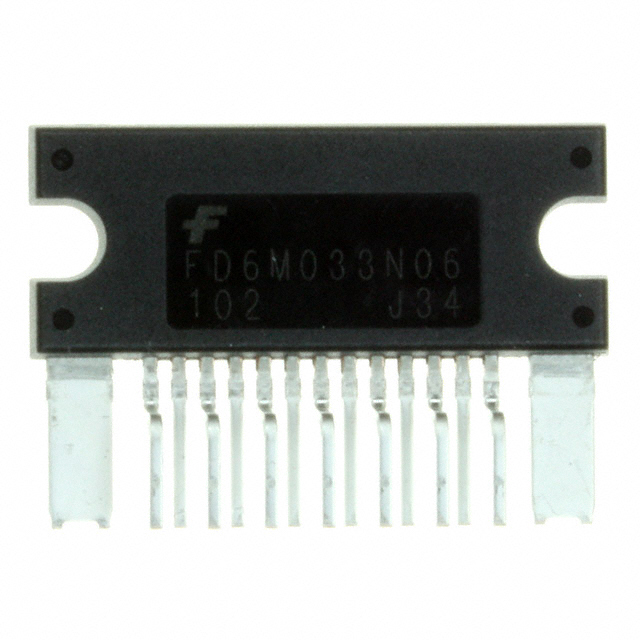

FD6M033N06
MOSFET 2N-CH 60V 73A EPM15Manufacturer: Fairchild Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Fairchild Semiconductor FD6M033N06 is a Power-SPM™ series 60V, 2 N-Channel MOSFET array in an EPM15 through-hole package. This component offers a low on-resistance of 3.3mOhm at 40A and 10V Vgs, with a continuous drain current capability of 73A at 25°C. Key electrical characteristics include a gate charge (Qg) of 129nC maximum at 10V Vgs and input capacitance (Ciss) of 6010pF maximum at 25V Vds. The device operates across a temperature range of -40°C to 150°C (TJ). This MOSFET array is suitable for applications in power management, motor control, and industrial power supplies.
Additional Information
Series: Power-SPM™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | EPM15 |
| Mounting Type | Through Hole |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 73A |
| Input Capacitance (Ciss) (Max) @ Vds | 6010pF @ 25V |
| Rds On (Max) @ Id, Vgs | 3.3mOhm @ 40A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 129nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | EPM15 |
Request a Quote
Clients Also Buy
FD6M045N06
MOSFET 2N-CH 60V 60A EPM15

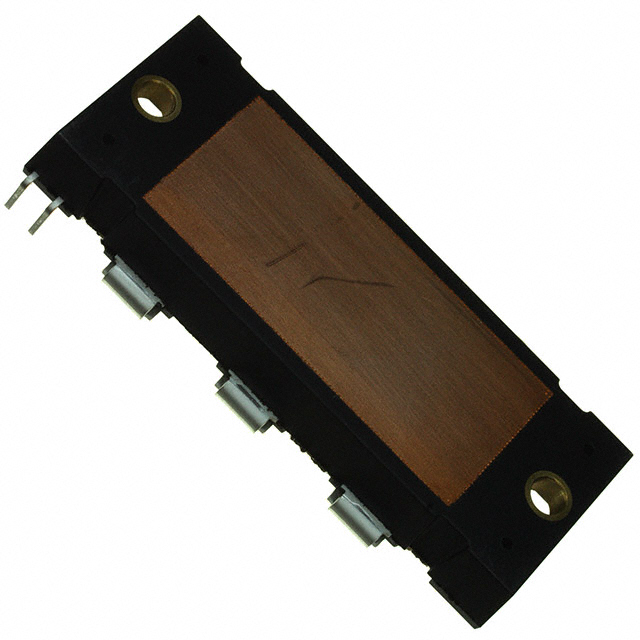

FP7G50US60
IGBT

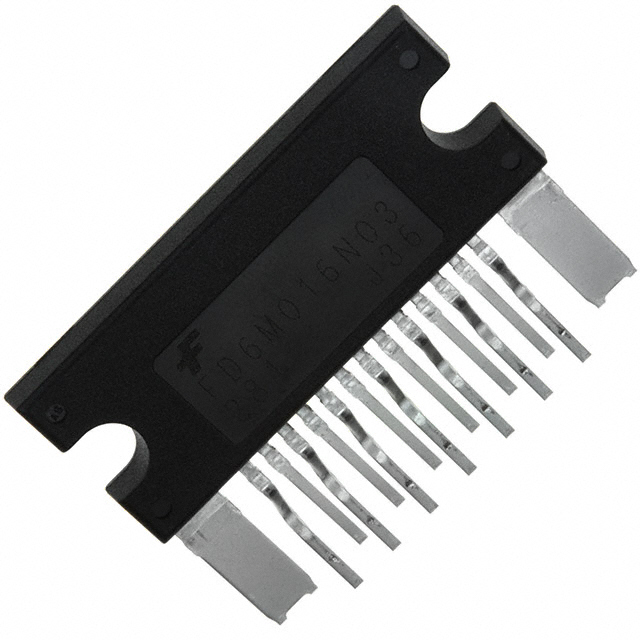

FD6M016N03
