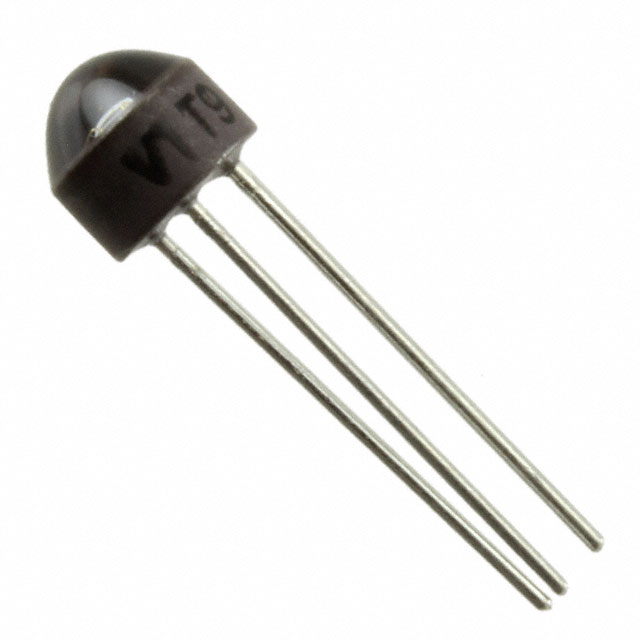

VTT9102H
SENSOR PHOTO TOP TO106-3 DOMEDManufacturer: Excelitas Technologies
Categories: Phototransistors
Quality Control: Learn More
Excelitas Technologies VTT9102H phototransistor, from the VTT series, features a TO-106-3 domed package with a top-view orientation. This through-hole component offers a maximum collector current (Ic) of 6 mA and a dark current (Id) of 100 nA. With a collector emitter breakdown voltage of 30 V and a viewing angle of 42°, the VTT9102H is suitable for applications requiring precise optical detection in industries such as industrial automation, consumer electronics, and medical devices.
Additional Information
Series: VTTRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | TO-106-3 Domed |
| Wavelength | - |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | - |
| Viewing Angle | 42° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 6 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
Request a Quote
Clients Also Buy
VTT1225H
SENSOR PHOTO TOP VIEW RADIAL
VTT1227H
SENSOR PHOTO TOP VIEW RADIAL

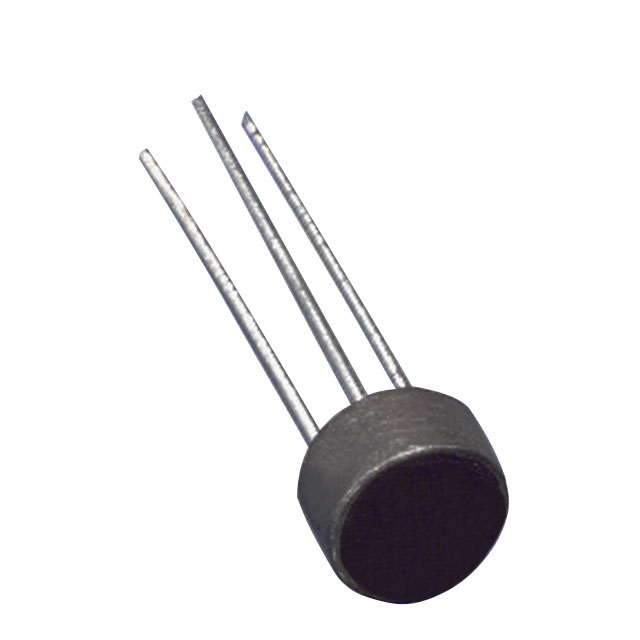

VTT1314H
