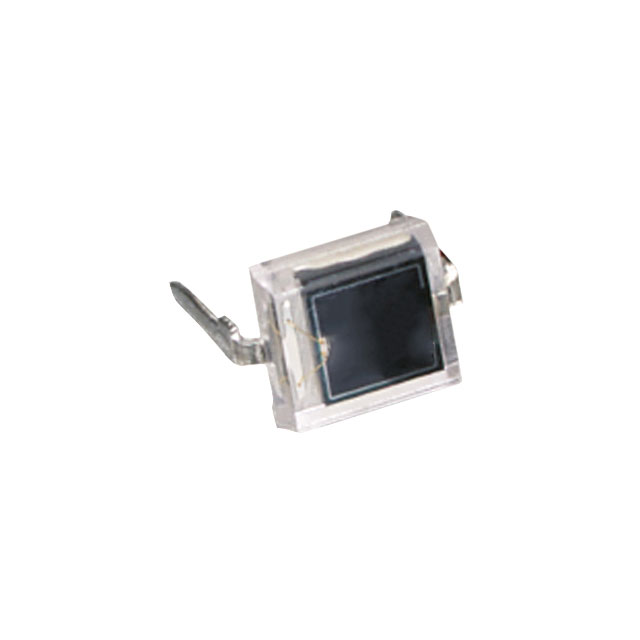

VTP8551H
SENSOR PHOTODIODE 925NM 2DIP MODManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More
Excelitas Technologies VTP8551H is a through-hole mounted photodiode module designed for precise light detection at 925nm. Featuring a 7.45mm² active area and a wide 100° viewing angle, this component offers a responsivity of 0.55 A/W at its peak wavelength. The 2-DIP module package is suitable for applications requiring robust mounting. It exhibits a low dark current of 30nA (typical) and operates within a temperature range of -40°C to 85°C, with a maximum reverse voltage of 140V. The spectral range extends from 400nm to 1150nm. This photodiode is utilized in industrial automation, medical imaging, and optical sensing systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-DIP Module |
| Wavelength | 925nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | - |
| Viewing Angle | 100° |
| Spectral Range | 400nm ~ 1150nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.55 A/W @ 925nm |
| Active Area | 7.45mm² |
| Current - Dark (Typ) | 30nA |
| Voltage - DC Reverse (Vr) (Max) | 140 V |
