VTP7840H
SENSOR PHOTODIODE 925NM RADIALManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

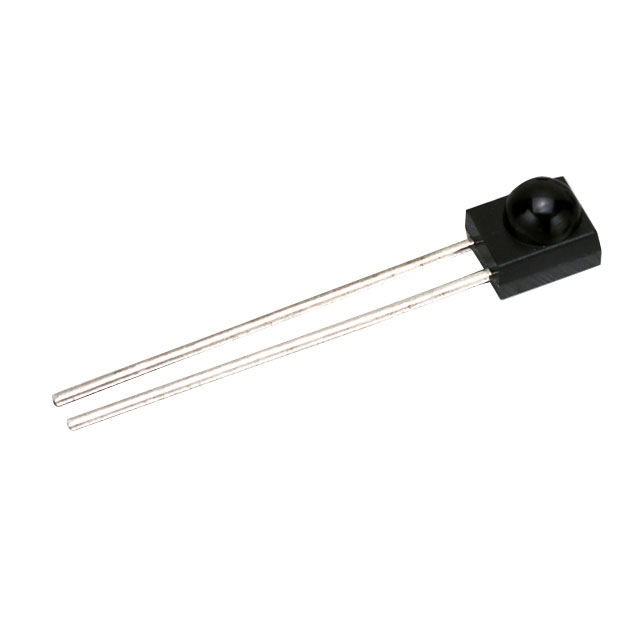

Excelitas Technologies VTP7840H is a radial, side-view photodiode optimized for operation at 925nm. This component features a broad spectral response from 725nm to 1150nm, with a responsivity of 0.55 A/W at its peak wavelength of 925nm. The VTP7840H exhibits a typical dark current of 20nA and a maximum reverse voltage rating of 1V. Its wide 96° viewing angle makes it suitable for applications requiring broad area detection. The device is housed in a radial, side-view package with a through-hole mounting type, and is supplied in bulk packaging. This photodiode is commonly utilized in industrial automation, medical instrumentation, and security systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Side View |
| Wavelength | 925nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | - |
| Viewing Angle | 96° |
| Spectral Range | 725nm ~ 1150nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.55 A/W @ 925nm |
| Active Area | 5.27mm² |
| Current - Dark (Typ) | 20nA |
| Voltage - DC Reverse (Vr) (Max) | 1 V |
