VTP4085H
SENSOR PHOTODIODE 925NM 2DIP MODManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

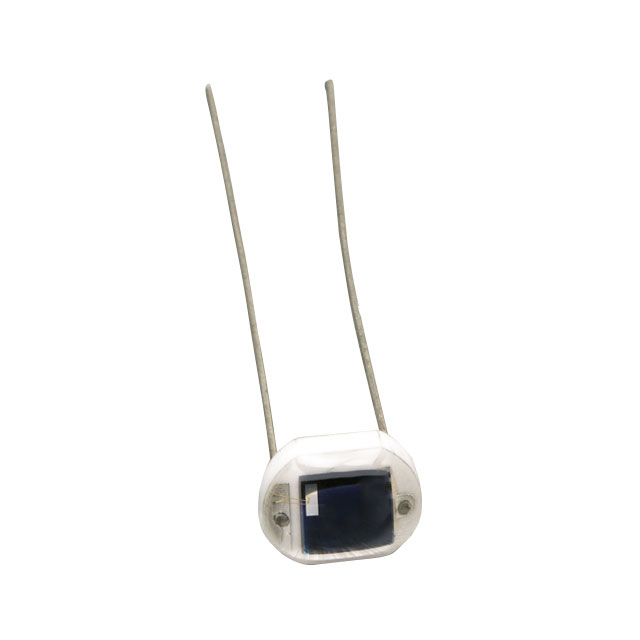

Excelitas Technologies VTP4085H is a silicon photodiode module designed for precise optical sensing applications. This component features a 21mm² active area and is housed in a standard 2-DIP Module package, suitable for through-hole mounting. With a peak responsivity of 0.55 A/W at 925nm, the VTP4085H effectively captures incident light across a spectral range of 400nm to 1100nm. The photodiode exhibits a typical dark current of 100nA and operates within an ambient temperature range of -20°C to 75°C. This component finds application in various industries including industrial automation, medical devices, and security systems where accurate and reliable light detection at near-infrared wavelengths is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-DIP Module |
| Wavelength | 925nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -20°C ~ 75°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.55 A/W @ 925nm |
| Active Area | 21mm² |
| Current - Dark (Typ) | 100nA |
