VTP1112H
SENSOR PHOTODIODE 580NM RADIALManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

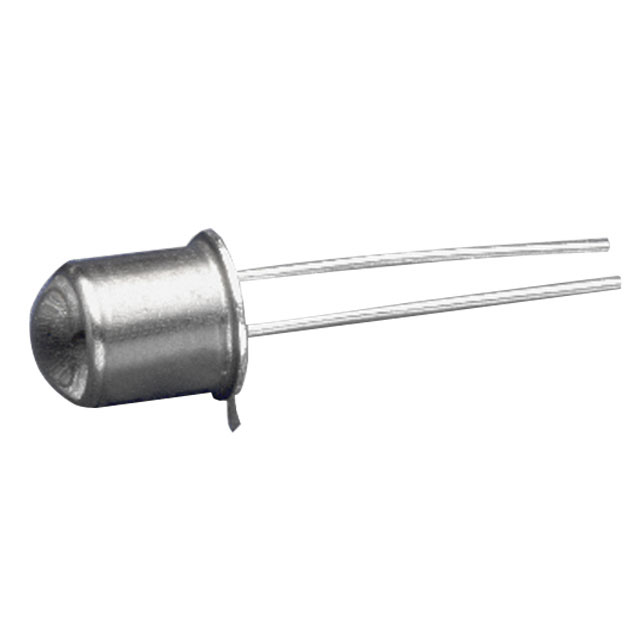

Excelitas Technologies VTP1112H is a silicon photodiode designed for precise light detection. This radial, lensed metal can component, housed in a TO-46-2 package, features a spectral range of 400nm to 1150nm with peak sensitivity at 580nm. The VTP1112H offers a narrow 30° viewing angle and a low dark current of 100pA typical. Its robust design includes a maximum reverse voltage of 40V and an operating temperature range from -40°C to 110°C. The active area is 1.60mm². This component is utilized in applications requiring accurate optical sensing, including industrial automation and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Lensed Metal Can, TO-46-2 |
| Wavelength | 580nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 110°C |
| Response Time | - |
| Viewing Angle | 30° |
| Spectral Range | 400nm ~ 1150nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 1.60mm² |
| Current - Dark (Typ) | 100pA |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
