VTP100H
SENSOR PHOTODIODE 925NM RADIALManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

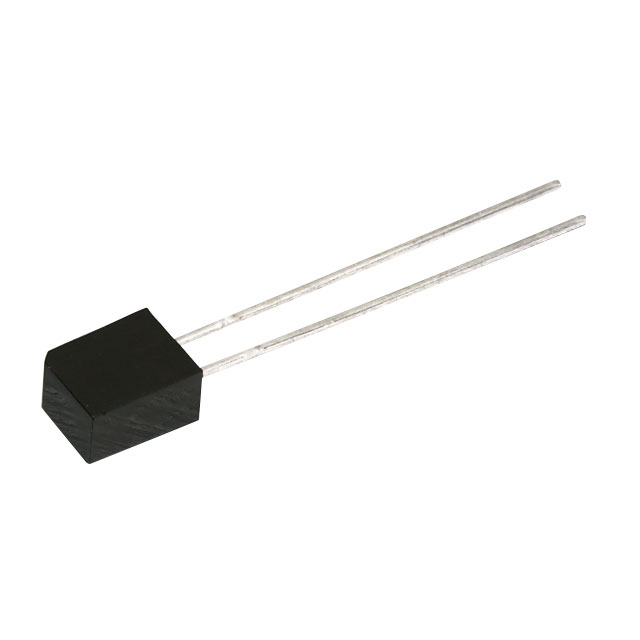

Excelitas Technologies VTP100H is a radial, side-view photodiode optimized for detection at 925nm. Featuring a 140° viewing angle and a 7.45mm² active area, this component is designed for through-hole mounting in bulk packaging. The VTP100H exhibits a typical dark current of 30nA and can withstand a maximum DC reverse voltage of 140V. Its spectral range extends from 725nm to 1150nm, making it suitable for applications in industrial automation, medical equipment, and optical sensing systems requiring precise near-infrared detection. The operating temperature range is -40°C to 100°C.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Side View |
| Wavelength | 925nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | - |
| Viewing Angle | 140° |
| Spectral Range | 725nm ~ 1150nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 7.45mm² |
| Current - Dark (Typ) | 30nA |
| Voltage - DC Reverse (Vr) (Max) | 140 V |
