VTD206KH
SENSOR PHOTODIODE 925NM RADIALManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

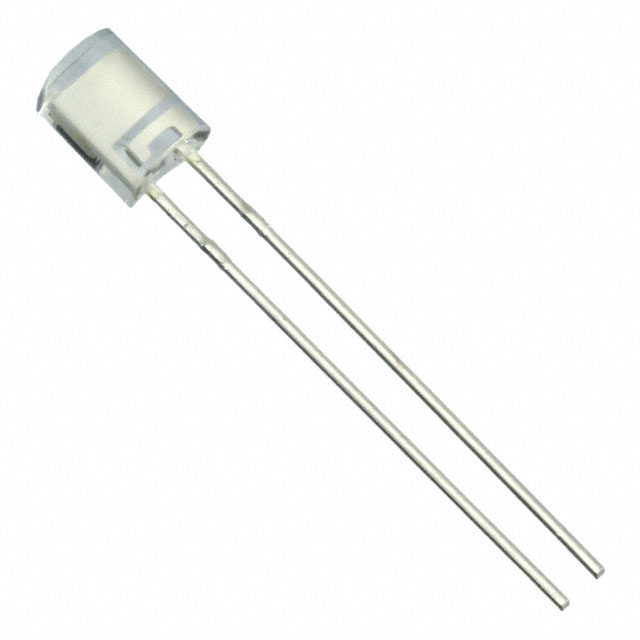

Excelitas Technologies VTD206KH is a radial, side-view photodiode optimized for operation at 925nm. Featuring a 120° viewing angle and a through-hole mounting type, this component offers a typical dark current of 30nA and a maximum reverse voltage of 50V. Its spectral range spans from 400nm to 1100nm, with an active area of 7.41mm². This photodiode is suitable for applications requiring detection in the near-infrared spectrum, commonly found in industrial automation, medical instrumentation, and optical sensing systems. The component is supplied in bulk packaging and operates within an ambient temperature range of -40°C to 100°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Side View |
| Wavelength | 925nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 100°C |
| Response Time | - |
| Viewing Angle | 120° |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 7.41mm² |
| Current - Dark (Typ) | 30nA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
