VTB9412BH
SENSOR PHOTODIODE 580NM 2DIP MODManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

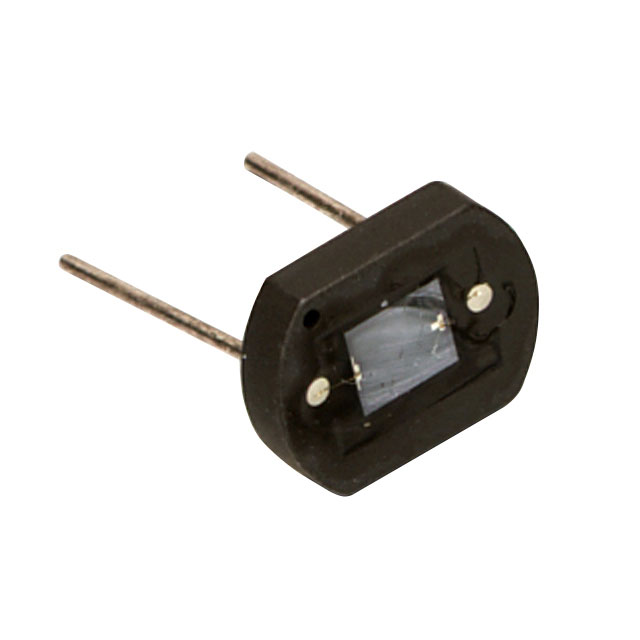

Excelitas Technologies VTB9412BH is a silicon photodiode module designed for the visible spectrum. This through-hole mount component, housed in a 2-DIP module package, features a 1.60mm² active area. It exhibits a peak spectral response at 580nm, with a spectral range extending from 330nm to 720nm. The photodiode offers a wide 100° viewing angle and a typical dark current of 100pA. It supports a maximum reverse voltage of 40V and operates within an ambient temperature range of -20°C to 75°C. This component finds application in various industries including industrial automation, medical instrumentation, and general lighting control.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-DIP Module |
| Wavelength | 580nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -20°C ~ 75°C |
| Response Time | - |
| Viewing Angle | 100° |
| Spectral Range | 330nm ~ 720nm |
| Color - Enhanced | Blue |
| Responsivity @ nm | - |
| Active Area | 1.60mm² |
| Current - Dark (Typ) | 100pA |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
