VTB1113H
SENSOR PHOTODIODE 920NM RADIALManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

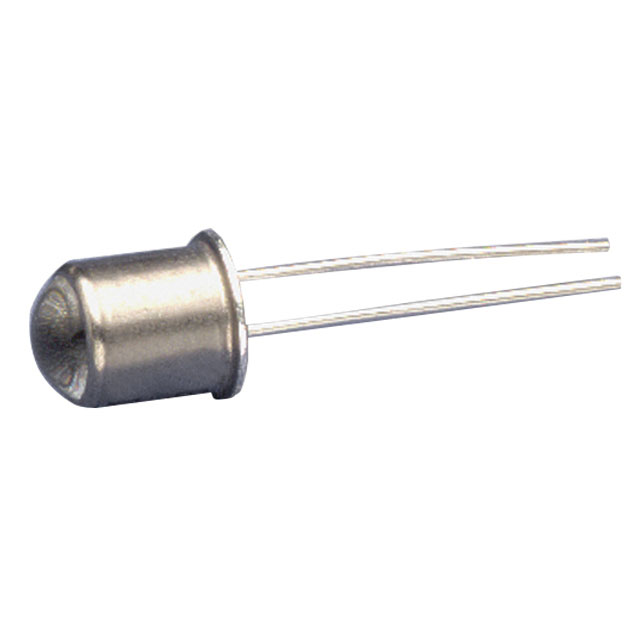

Excelitas Technologies VTB1113H is a radial photodiode featuring a 920nm peak sensitivity and a 30° viewing angle. This component is housed in a TO-46-2 lensed metal can package, suitable for through-hole mounting. The VTB1113H offers a wide spectral range of 320nm to 1100nm and a low dark current of 20pA typical. It operates within an extended temperature range of -40°C to 110°C and supports a maximum reverse voltage of 40V. The active area measures 1.60mm². This photodiode is utilized in applications such as industrial sensing, medical instrumentation, and optical monitoring systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Lensed Metal Can, TO-46-2 |
| Wavelength | 920nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 110°C |
| Response Time | - |
| Viewing Angle | 30° |
| Spectral Range | 320nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 1.60mm² |
| Current - Dark (Typ) | 20pA |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
