VTB1113BH
SENSOR PHOTODIODE 580NM RADIALManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

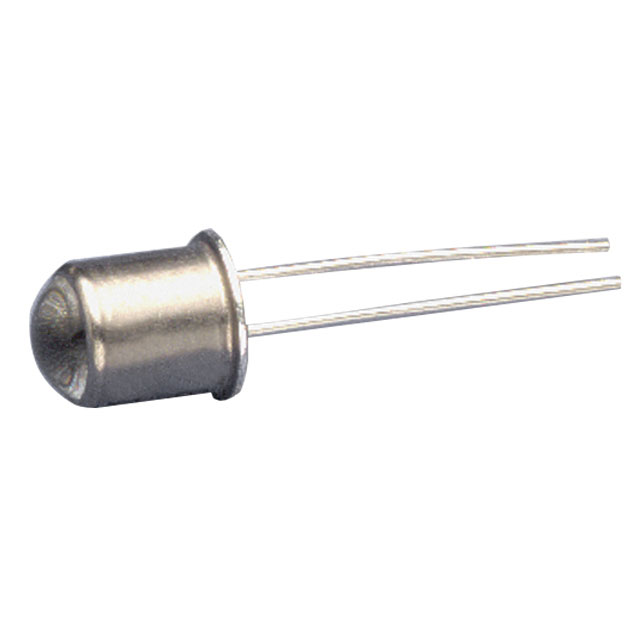

Excelitas Technologies VTB1113BH is a silicon photodiode with a peak spectral sensitivity at 580nm. This component features a lensed metal can package, TO-46-2, for radial mounting via through-hole technology. The active area is 1.60mm², and it offers a 30° viewing angle. The VTB1113BH exhibits a low dark current of 20pA (typical) and can withstand a reverse voltage up to 40V. Its operating temperature range is -40°C to 110°C, with a spectral response spanning from 330nm to 720nm. This photodiode is suitable for applications in industrial automation, medical imaging, and optical sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Lensed Metal Can, TO-46-2 |
| Wavelength | 580nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 110°C |
| Response Time | - |
| Viewing Angle | 30° |
| Spectral Range | 330nm ~ 720nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 1.60mm² |
| Current - Dark (Typ) | 20pA |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
