FND-100QH
SENSOR PHOTODIODE 850NM TO5Manufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More
Excelitas Technologies FND-100 series photodiode, part number FND-100QH, is a high-speed PIN photodiode optimized for the 850nm wavelength. This component features a 1ns response time and a 5.1mm² active area, making it suitable for demanding applications. The TO-5 hermetically sealed metal package with through-hole mounting ensures robust integration. Key specifications include a dark current of 10nA (typ) and a maximum reverse voltage of 150V. Its spectral range extends from 200nm to 1150nm, with a responsivity of 0.6 A/W at both 254nm and 850nm. This device is commonly found in industrial automation, medical instrumentation, and optical sensing systems.
Additional Information
Series: FND-100RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | TO-5 |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 70°C |
| Response Time | 1ns |
| Viewing Angle | - |
| Spectral Range | 200nm ~ 1150nm |
| Color - Enhanced | Ultraviolet (UV) |
| Responsivity @ nm | 0.6 A/W @ 254nm, 0.6 A/W @ 850nm |
| Active Area | 5.1mm² |
| Current - Dark (Typ) | 10nA |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
Request a Quote
Clients Also Buy

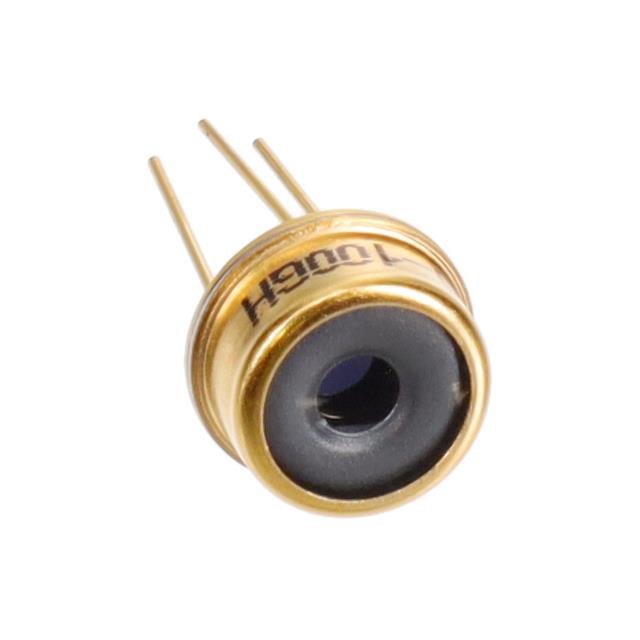

FND-100GH
