C30642GH
SENSOR PHOTODIODE TO5Manufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

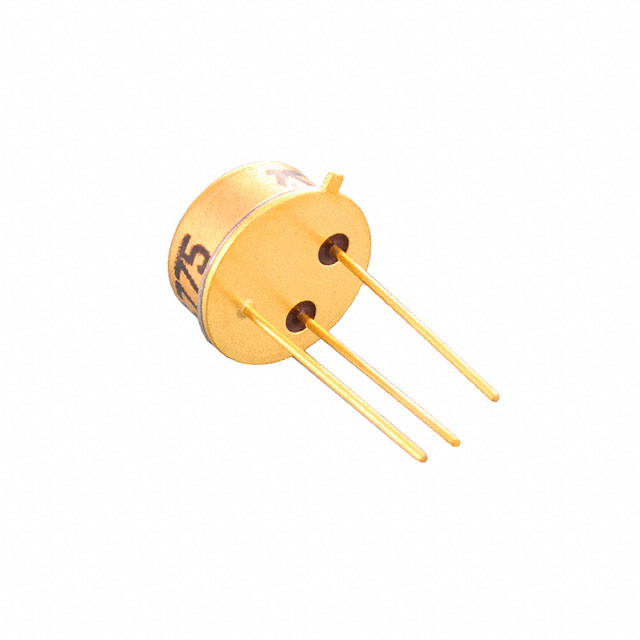

Excelitas Technologies C30642GH is a Pin photodiode in a TO-5-3 Metal Can (TO-205AA) package. This component features an active area of 3.1mm² and a dark current of 10nA typical. Responsivity is specified at 0.20 A/W at 850nm, 0.90 A/W at 1300nm, and 0.95 A/W at 1550nm, with a spectral range from 1300nm to 1550nm. The maximum DC reverse voltage is 50V. Mounting is via through hole. Operating temperatures range from -40°C to 85°C. This device is suitable for applications in fiber optic communications and industrial sensing.
Additional Information
Series: C30642RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Wavelength | - |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 1300nm ~ 1550nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.20 A/W @ 850nm, 0.90 A/W @ 1300nm, 0.95 A/W @ 1550nm |
| Active Area | 3.1mm² |
| Current - Dark (Typ) | 10nA |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
