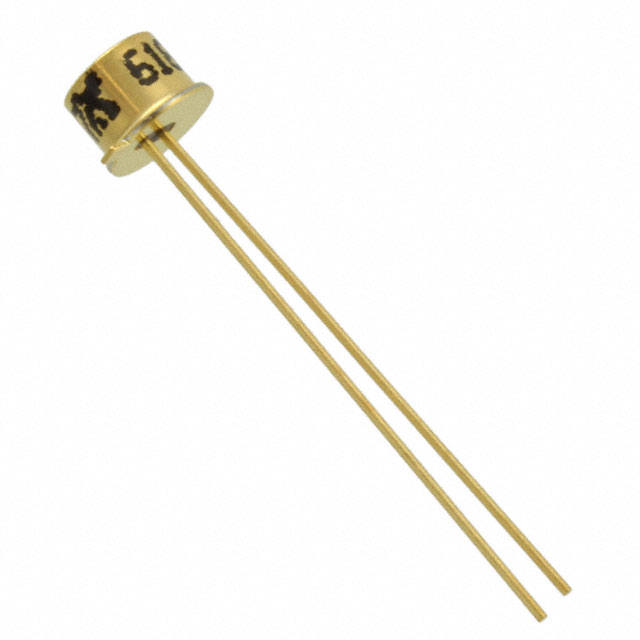

C30618GH
SENSOR PHOTODIODE 1300NM TO18-2Manufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More
Excelitas Technologies C30618GH is a high-speed PIN photodiode optimized for operation at 1300nm. This component features a fast response time of 1ns, enabling precise signal detection in demanding applications. Its TO-18-2 metal can package provides robust environmental protection and facilitates through-hole mounting. The photodiode exhibits a typical dark current of 1nA and a reverse voltage rating of 80V, ensuring reliable performance across a broad operating temperature range of -40°C to 125°C. With a responsivity of 0.80 A/W at 1300nm and an active area of 0.096mm², the C30618GH is well-suited for fiber optic communications, optical sensing, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 1300nm |
| Mounting Type | Through Hole |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | 1ns |
| Viewing Angle | - |
| Spectral Range | - |
| Color - Enhanced | - |
| Responsivity @ nm | 0.80 A/W @ 1300nm |
| Active Area | 0.096mm² |
| Current - Dark (Typ) | 1nA |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
