C30617L-100
SENSOR PHOTODIODE 1550NM MODULEManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More

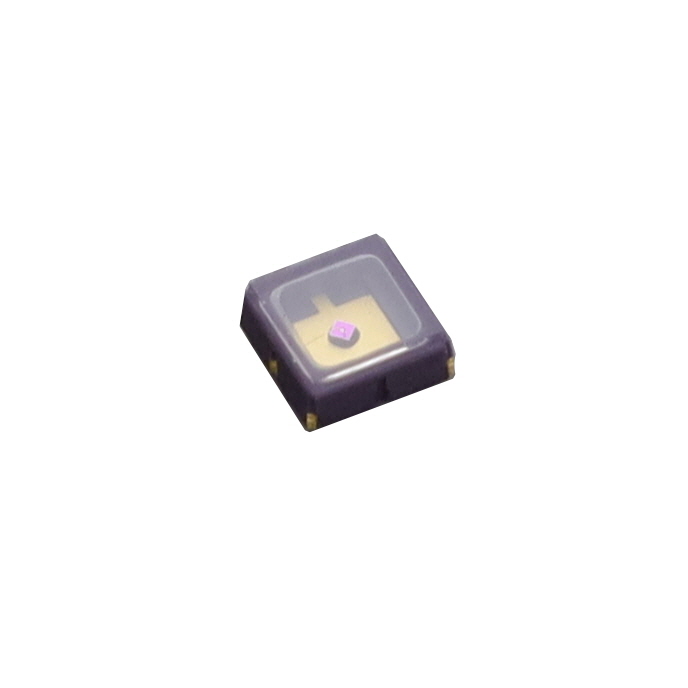

Excelitas Technologies C30617L-100 is a photodiode module optimized for operation at 1550nm. This Pin photodiode features a 100µm diameter active area and delivers a rapid response time of 70ps, making it suitable for high-speed optical detection. The module exhibits a dark current of 1nA and a responsivity of 0.95 A/W at its peak wavelength. Its spectral range extends from 960nm to 1700nm, with a maximum reverse voltage rating of 100V. Designed for surface mount applications, the C30617L-100 operates within an ambient temperature range of -40°C to 125°C. This component finds utility in fiber optic communications, optical sensing, and other applications requiring precise and fast detection of infrared light.
Additional Information
Series: C30617L-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Wavelength | 1550nm |
| Mounting Type | Surface Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | 70ps |
| Viewing Angle | - |
| Spectral Range | 960nm ~ 1700nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.95 A/W @ 1550nm |
| Active Area | 100µm Dia |
| Current - Dark (Typ) | 1nA |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Qualification | - |
