C30617ECERH
SENSOR PHOTODIOD 1300/1550NM MODManufacturer: Excelitas Technologies
Categories: Photodiodes
Quality Control: Learn More
Excelitas Technologies C30617 series PIN photodiode module, part number C30617ECERH, offers high-speed detection across the 1300nm and 1550nm wavelengths. Featuring a 100µm diameter active area, this component delivers a typical dark current of 1nA and a response time of 70ps. Responsivity is rated at 0.9 A/W at 1300nm and 0.95 A/W at 1550nm, with a spectral range extending from 800nm to 1700nm. The module is designed for chassis mounting and operates within a temperature range of -40°C to 125°C, with a maximum reverse voltage of 100V. This component is suitable for applications in telecommunications, optical networking, and high-speed sensing systems.
Additional Information
Series: C30617RoHS Status: RoHS CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Wavelength | 1300nm, 1550nm |
| Mounting Type | Chassis Mount |
| Diode Type | Pin |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | 70ps |
| Viewing Angle | - |
| Spectral Range | 800nm ~ 1700nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.9 A/W @ 1300nm, 0.95 A/W @ 1550nm |
| Active Area | 100µm Dia |
| Current - Dark (Typ) | 1nA |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Qualification | - |
Request a Quote
Clients Also Buy
C30617BFCH
SENSOR PHOTODIO 1300/1550NM TO18

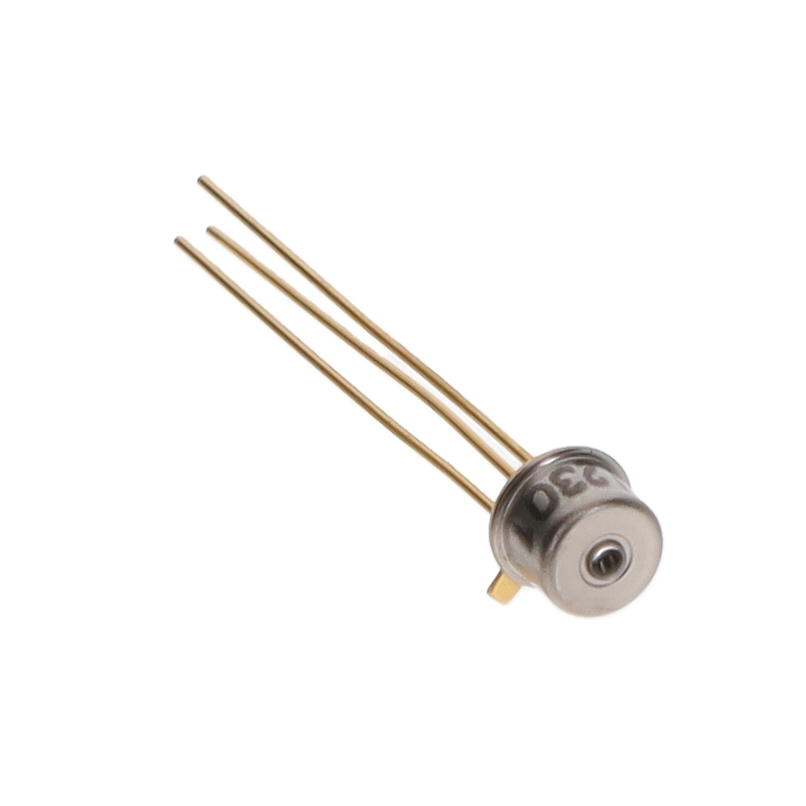

C30617BH
