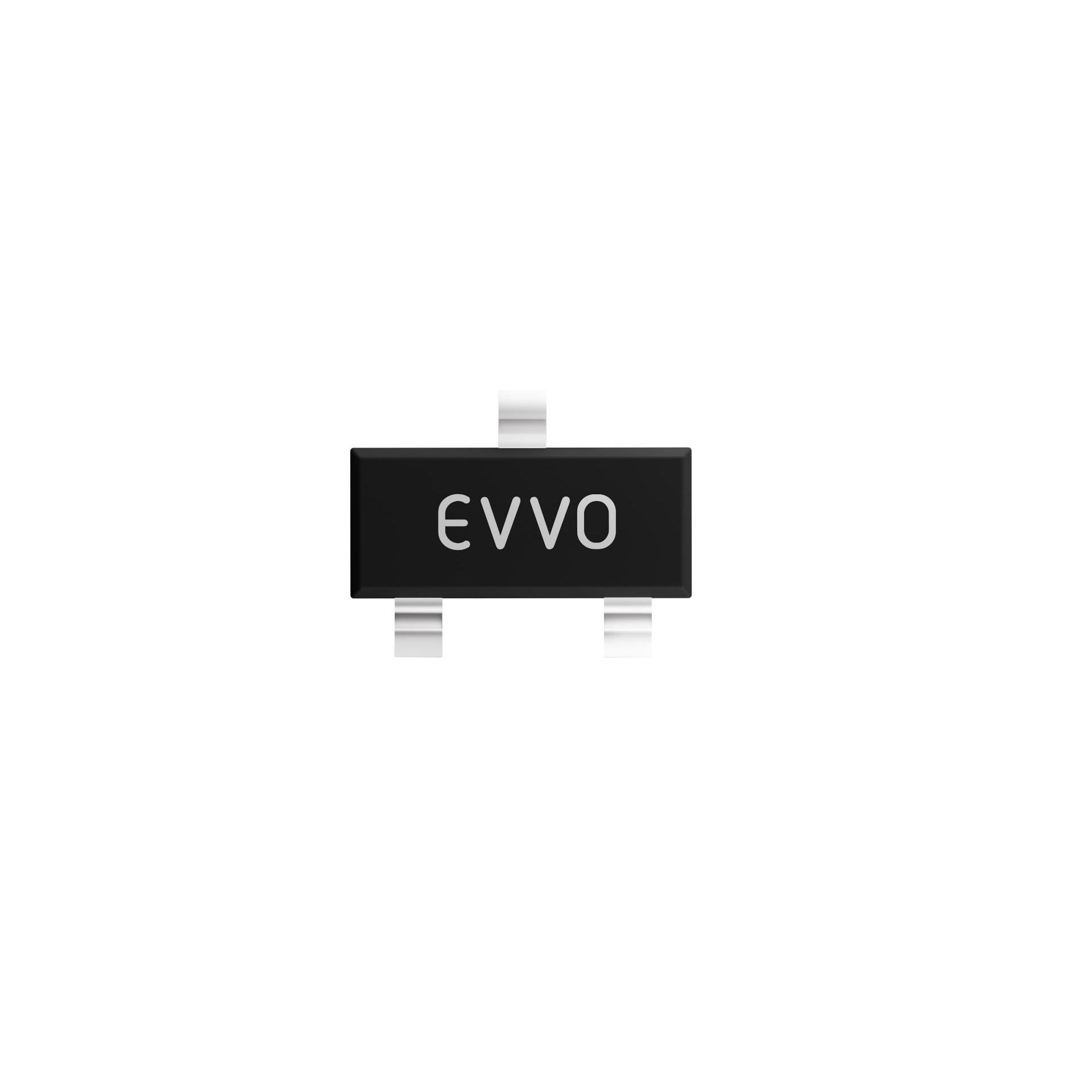

FDN340P-EV
MOSFET P-CH 20V 2A SOT-23Manufacturer: EVVO
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 2A (Ta) 1.1W (Ta) Surface Mount SOT-23
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.1W (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SOT-23 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 10 V |
| Qualification | - |
