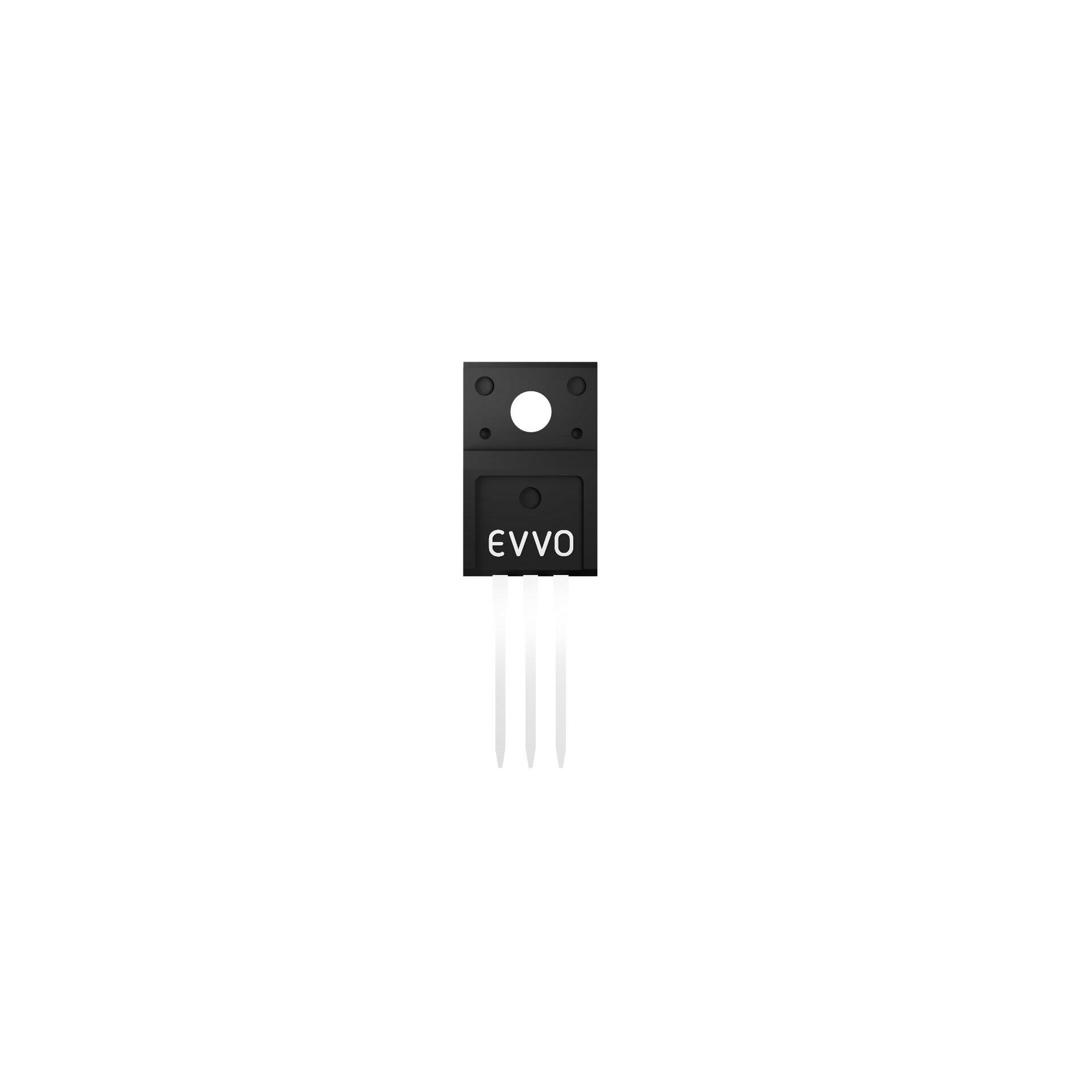

4N60F
MOSFET N-CH 600V 4A TO220FManufacturer: EVVO
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 3A (Tc) 30W (Tc) Through Hole TO-220F
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.8Ohm @ 1.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-220F |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 13.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 462 pF @ 25 V |
| Qualification | - |
