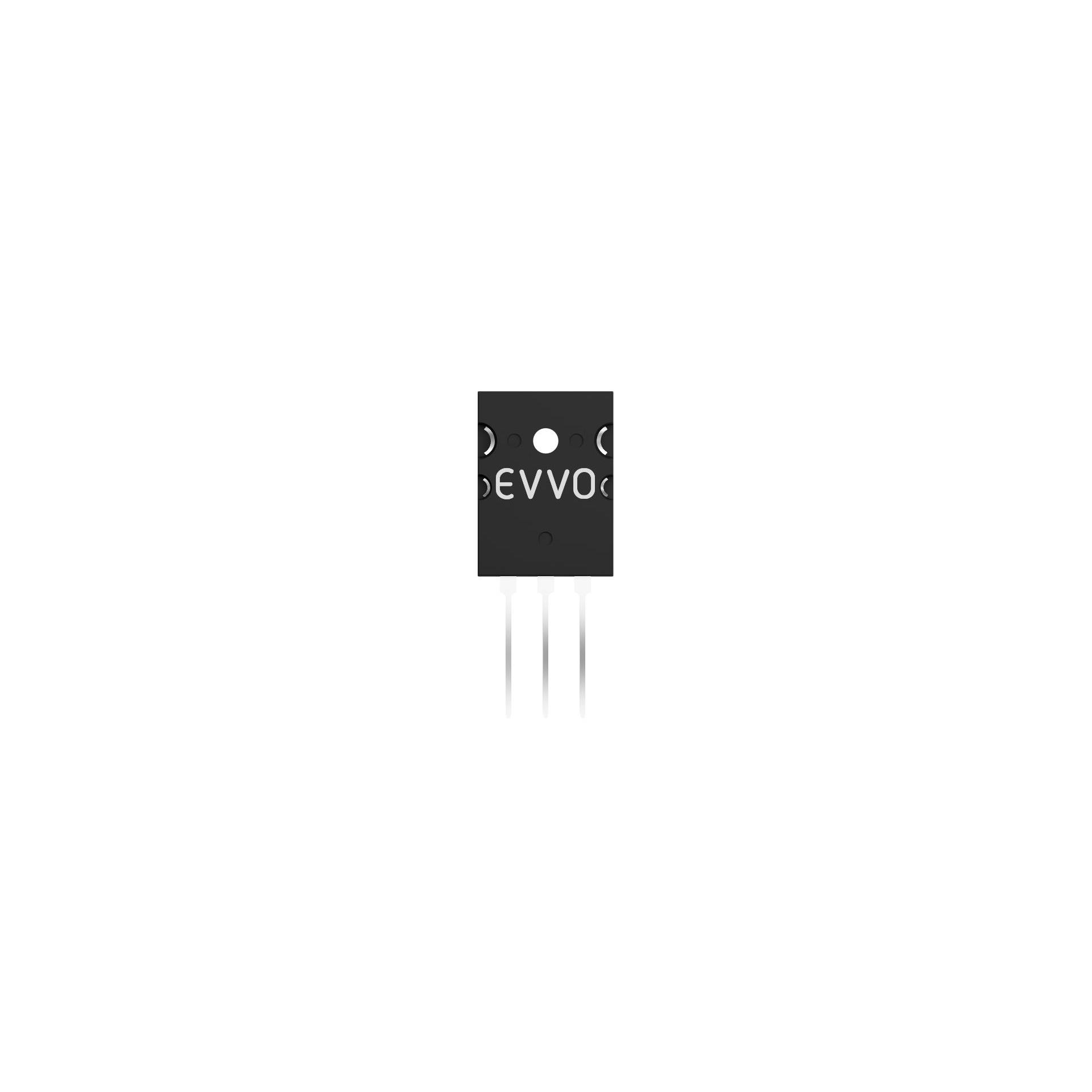

MJL21196G TO-264
TRANS NPN 250V 16A TO-3PManufacturer: EVVO
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 250 V 16 A 4MHz 230 W Surface Mount TO-264
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 3.2A, 16A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 8A, 5V |
| Frequency - Transition | 4MHz |
| Supplier Device Package | TO-264 |
| Grade | - |
| Current - Collector (Ic) (Max) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 250 V |
| Power - Max | 230 W |
| Qualification | - |
