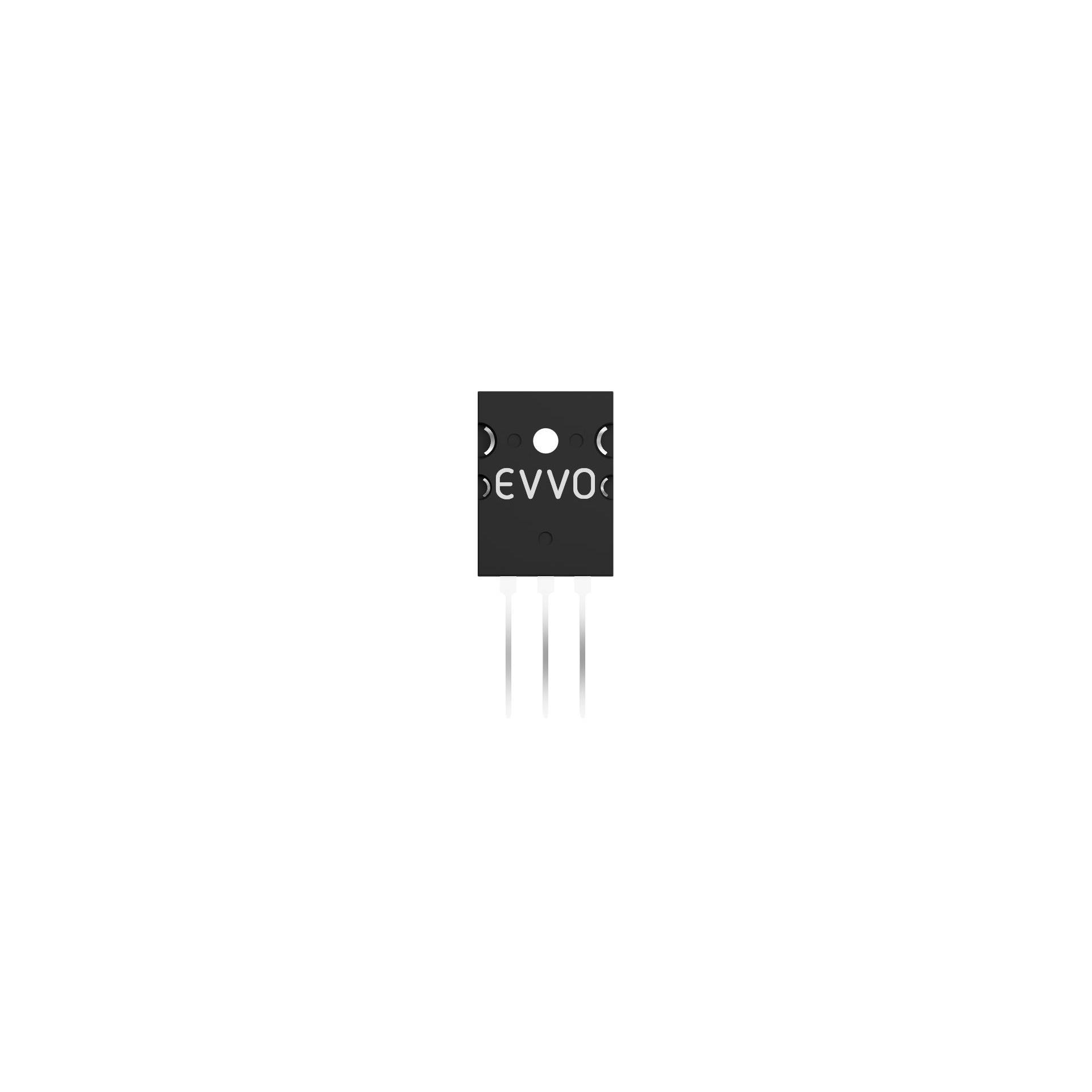

2SA1941
TRANS PNP 140V 10A TO3PManufacturer: EVVO
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 140 V 10 A 30MHz 100 W Through Hole TO-3PS
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 800mA, 8A |
| Current - Collector Cutoff (Max) | 5µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 55 @ 1A, 5V |
| Frequency - Transition | 30MHz |
| Supplier Device Package | TO-3PS |
| Grade | - |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 100 W |
| Qualification | - |
Request a Quote
