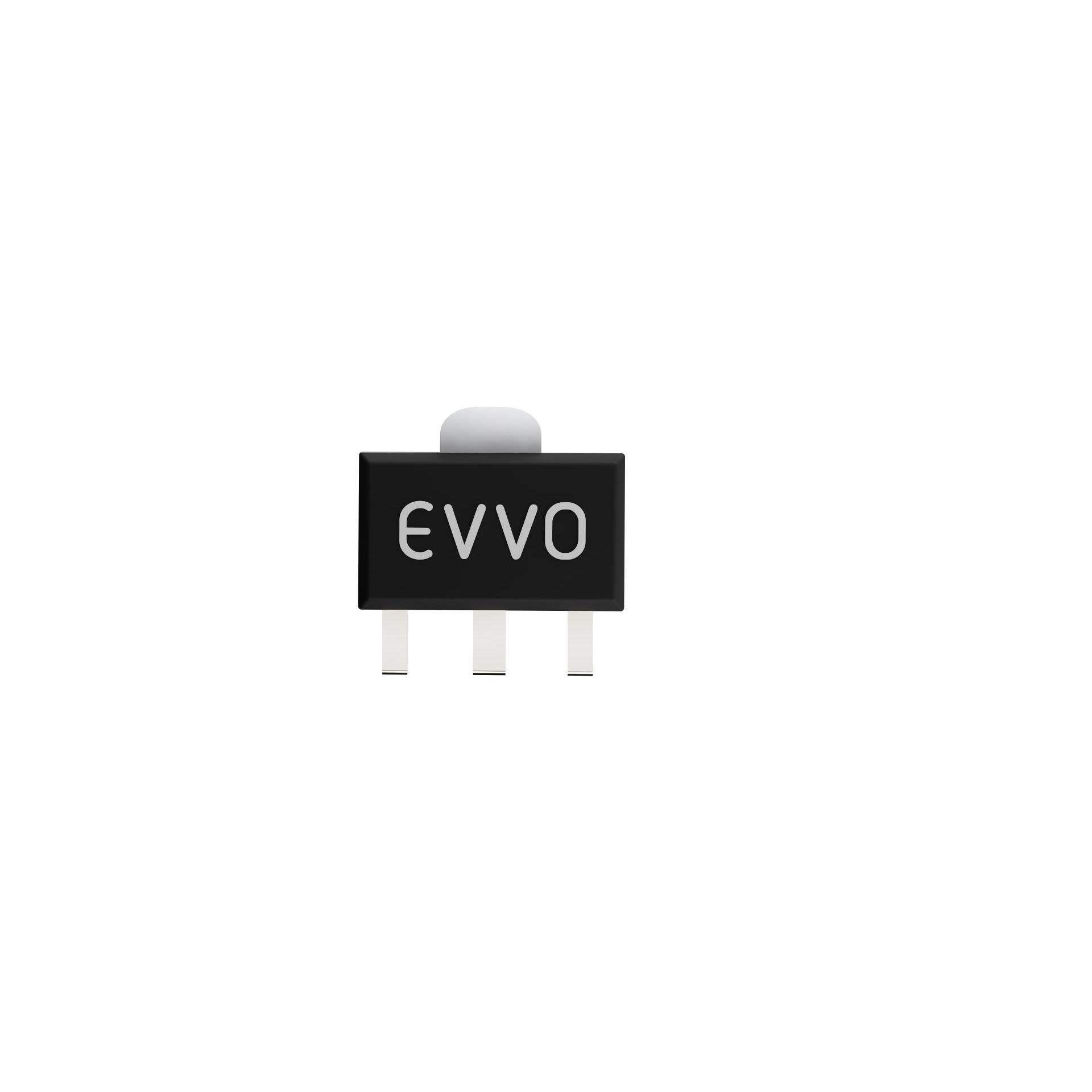

SCR 400 V 800 mA Sensitive Gate Surface Mount SOT-89
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | SOT-89 |
| Grade | - |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Voltage - Off State | 400 V |
| Qualification | - |
