EAPL2835WB0
LED COOL WHITE 5700K 2PLCCManufacturer: Everlight Electronics Co Ltd
Categories: LED White Lighting
Quality Control: Learn More
Everlight Electronics Co Ltd EAPL2835WB0 is a cool white LED with a Correlated Color Temperature (CCT) of 5700K. This surface-mount component, packaged in a 2-PLCC (1411 or 3528 Metric) case, offers a typical forward voltage of 3.25V and a maximum forward current of 75mA, with a test current of 60mA. It provides a luminous flux of 28 lumens at 60mA and 25°C, with a luminous efficacy of 144 lm/W. The component features a wide viewing angle of 120° and a Color Rendering Index (CRI) of 80. Its dimensions are 3.50mm x 2.80mm with a seated height of 0.85mm. This LED is commonly utilized in general illumination, automotive lighting, and display backlighting applications. The EAPL2835WB0 is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1411 (3528 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.138"" L x 0.110"" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Current - Test | 60mA |
| Viewing Angle | 120° |
| Current - Max | 75mA |
| Supplier Device Package | 2-PLCC |
| Lumens/Watt @ Current - Test | 144 lm/W |
| Height - Seated (Max) | 0.033"" (0.85mm) |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 28lm (22lm ~ 33lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

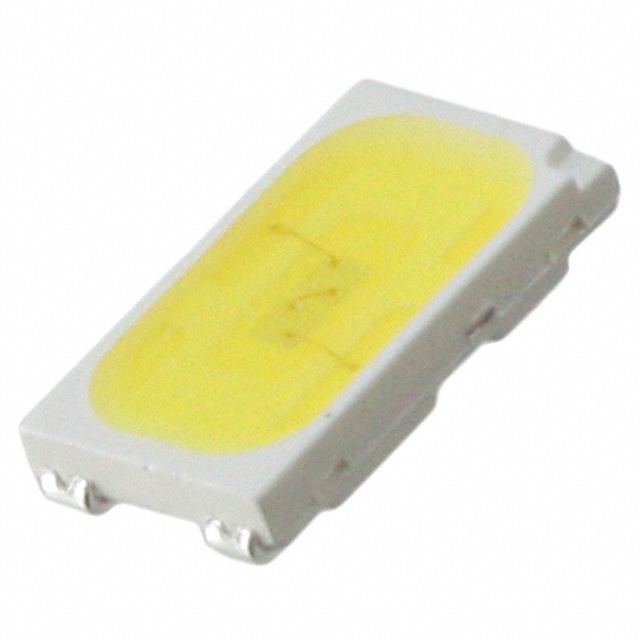

62-227B/KK2C-N3030N4P3S2Z6/2T
LED 62-227B WARM WHT 3000K SMD

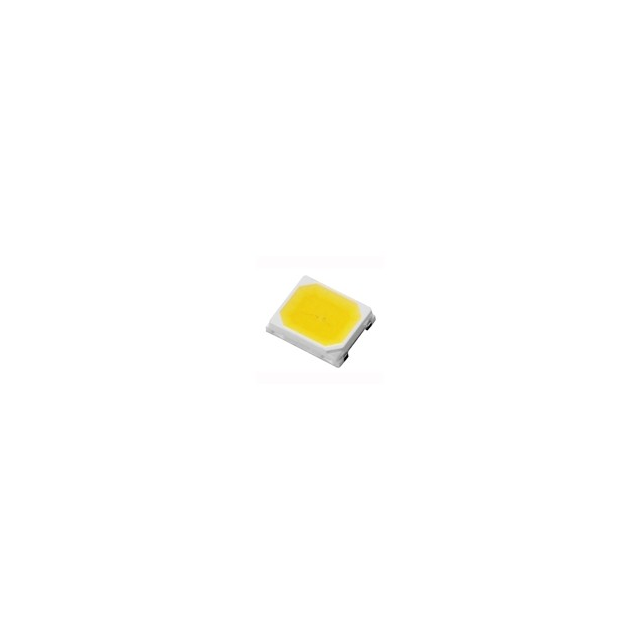

67-22ST/RKE-N30103380U2/SZM/2T
LED WARM WHT 3000K 2PLCC

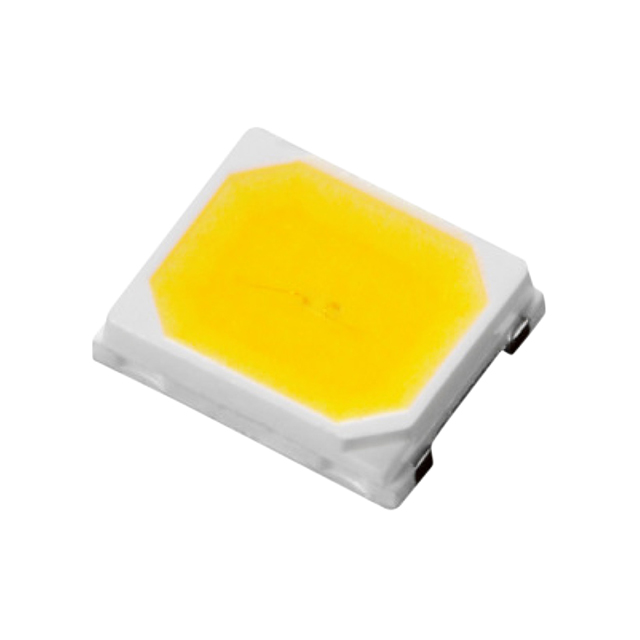

EAHC2835WD1
