QTLP600CIGTR
LED GREEN CLEAR 0603 SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

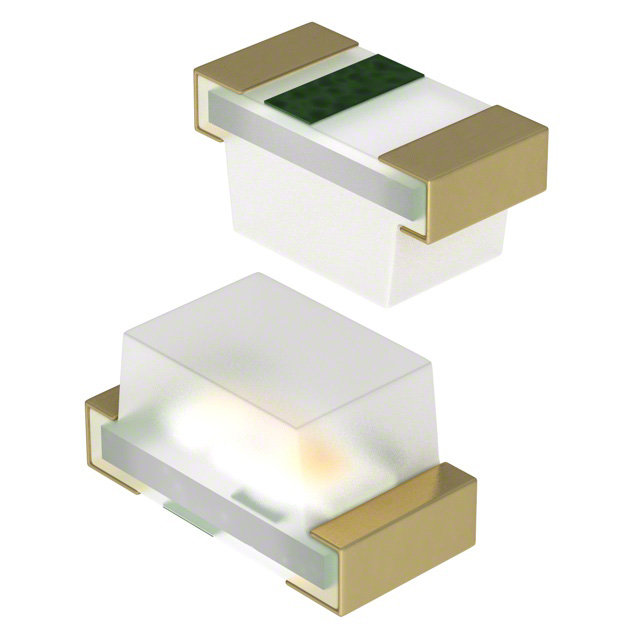

Everlight Electronics Co Ltd QTLP600CIGTR, a green LED with a dominant wavelength of 525nm and peak wavelength of 520nm, is designed for discrete indication applications. This 0603 (1608 Metric) SMD component features a clear, colorless lens with a flat top, measuring 1.20mm x 0.80mm. It operates with a typical forward voltage of 3.5V and a test current of 20mA, delivering a millicandela rating of 110mcd. The viewing angle is 100°. This device is supplied in a Tape & Reel (TR) package, suitable for automated surface mounting. Its compact dimensions of 1.60mm L x 0.80mm W and height of 0.80mm make it ideal for space-constrained designs in industries such as consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Green |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 110mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 520nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 0603 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
