QTLP600CBTR
LED BLUE CLEAR 0603 SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

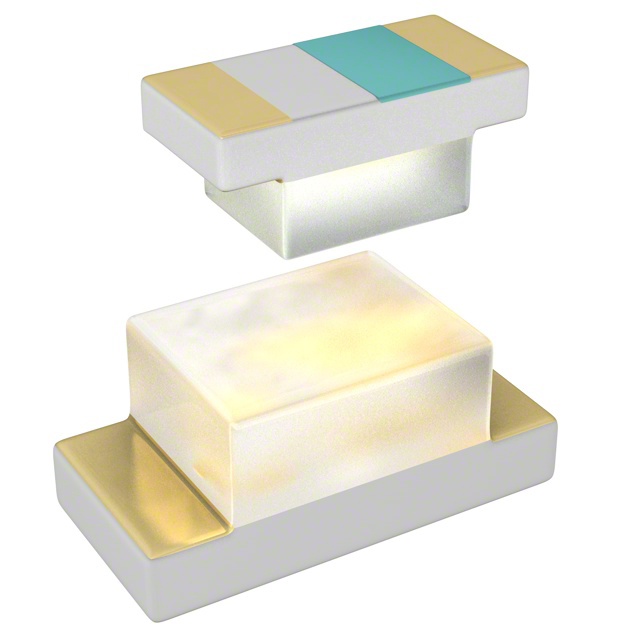

Everlight Electronics Co Ltd QTLP600CBTR is a blue, clear lens, 0603 SMD LED with a dominant wavelength of 465nm and a peak wavelength of 430nm. This discrete LED provides clear indication with a typical forward voltage of 3.8V at 20mA test current, delivering 20mcd luminous intensity. The component features a standard configuration with a flat-top, rectangular lens measuring 1.20mm x 0.80mm and a viewing angle of 100°. The surface mount package is 1.60mm L x 0.80mm W and 0.80mm H (max), supplied in tape and reel. This LED is suitable for applications in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Blue |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 100° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 430nm |
| Wavelength - Dominant | 465nm |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
