EASV3015AGBA0
LED BLUE/GREEN/ORG CLR 4SMD R/AManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

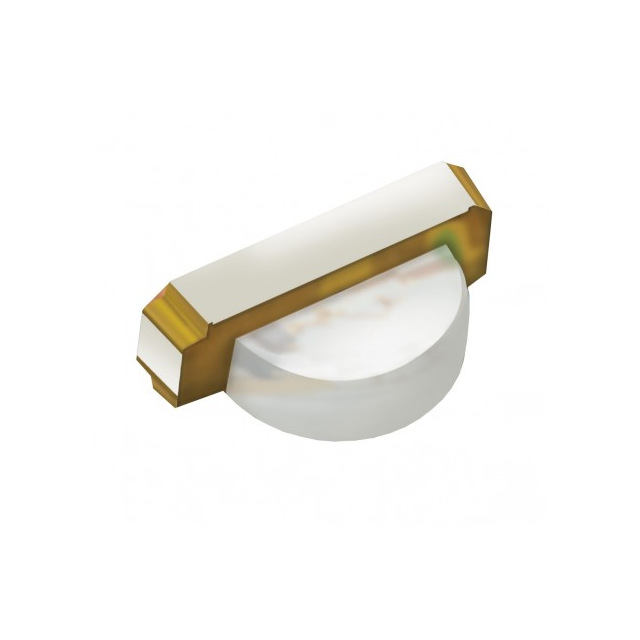

Everlight Electronics Co Ltd presents the EASV3015AGBA0, a discrete LED component featuring distinct Blue, Green, and Orange emitters. This 4-SMD, No Lead package is designed for surface mount, right-angle applications. The component utilizes a common anode configuration and offers dominant wavelengths of 470nm for blue, 525nm for green, and 605nm for orange, with peak wavelengths at 468nm, 518nm, and 611nm respectively. Forward voltage specifications are 3.3V for the blue and green outputs, and 2V for the orange output, all tested at 20mA. Luminous intensity ratings are 65mcd (blue), 210mcd (green), and 140mcd (orange) at the same test current. The lens is colorless and rectangular with a domed top, measuring 2.00mm x 1.00mm, providing a 100° viewing angle. The overall dimensions of the component are 3.00mm L x 1.50mm W, with a maximum height of 1.10mm. This LED is commonly employed in industrial automation, consumer electronics, and automotive lighting applications. Supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Blue, Green, Orange |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 65mcd Blue, 210mcd Green, 140mcd Orange |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 3.3V Green, 2V Orange |
| Lens Color | Colorless |
| Current - Test | 20mA Blue, 20mA Green, 20mA Orange |
| Viewing Angle | 100° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 468nm Blue, 518nm Green, 611nm Orange |
| Wavelength - Dominant | 470nm Blue, 525nm Green, 605nm Orange |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
