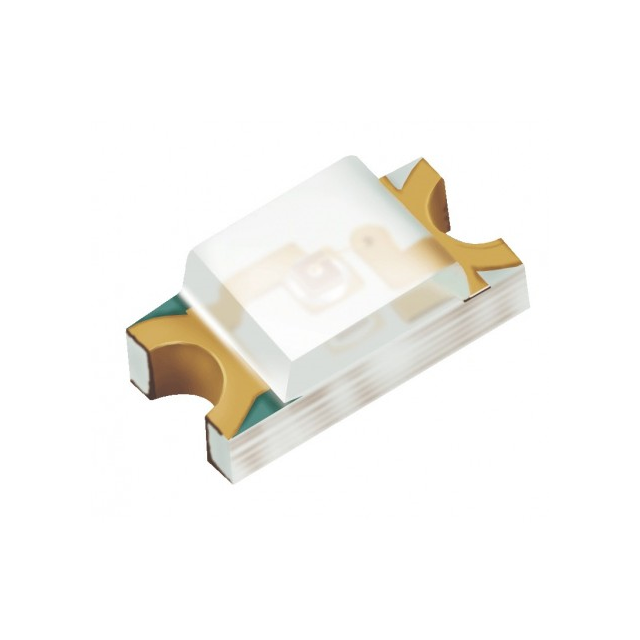

EAST3215AA1
LED ORANGE CLEAR 1206 SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More
The Everlight Electronics Co Ltd EAST3215AA1 is an orange, clear lens, 1206 (3216 Metric) SMD LED designed for discrete indication. Featuring a dominant wavelength of 606.5nm and a typical forward voltage of 2.05V at 20mA test current, this component delivers 135mcd luminous intensity. Its rectangular lens, measuring 2.00mm x 1.50mm, is clear and flat-topped, with an independent configuration. The surface mount device has dimensions of 3.20mm L x 1.50mm W and a height of 1.10mm. With a broad viewing angle of 130°, the EAST3215AA1 is suitable for applications in consumer electronics, industrial control, and automotive systems requiring reliable visual feedback. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Orange |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 135mcd |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 611nm |
| Wavelength - Dominant | 606.5nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.50mm |
