EAST1615AWA0
LED ORANGE/WHITE DIFFUSED 4SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

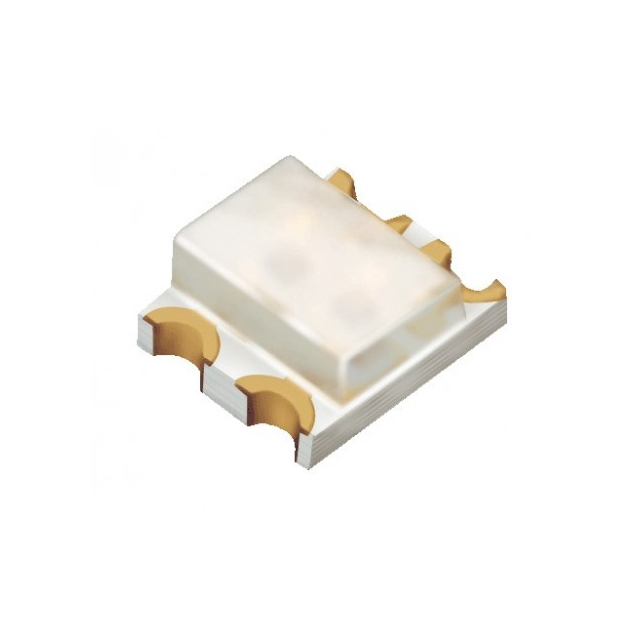

Everlight Electronics Co Ltd EAST1615AWA0 is a discrete LED component featuring independent orange and white illumination. This 4-SMD, No Lead package is designed for surface mounting, with dimensions of 1.50mm L x 1.60mm W and a maximum height of 0.60mm. The diffused, yellow lens has a rectangular shape with a flat top, measuring 1.20mm x 1.50mm. The orange LED exhibits a dominant wavelength of 605nm and a forward voltage of 2.05V at a test current of 5mA, achieving a typical luminous intensity of 32mcd. The white LED operates at 3.2V with a 5mA test current, providing 79mcd intensity. Both colors offer a wide 140° viewing angle. This component is supplied on a Tape & Reel (TR) for automated assembly, commonly found in industrial controls and signage applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Orange, White |
| Size / Dimension | 1.50mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 32mcd Orange, 79mcd White |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.05V Orange, 3.2V White |
| Lens Color | Yellow |
| Current - Test | 5mA Orange, 5mA White |
| Viewing Angle | 140° |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 611nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.50mm |
