EAST16084OA0
LED ORANGE CLEAR 2SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

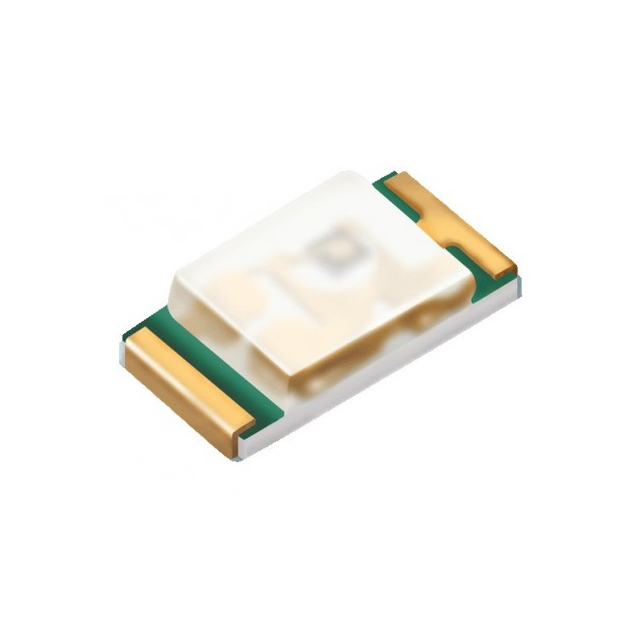

Everlight Electronics Co Ltd EAST16084OA0 is an orange LED with a dominant wavelength of 616nm and a peak wavelength of 621nm. This 2-SMD component features a clear, colorless lens with a flat-top rectangular profile measuring 1.00mm x 0.80mm. The LED is designed for surface mounting, with a compact 0603 (1608 Metric) package measuring 1.60mm L x 0.80mm W and a maximum height of 0.50mm. It operates with a typical forward voltage of 2V and a test current of 5mA, achieving a luminous intensity of 25mcd. The viewing angle is 120°. This component is commonly utilized in industrial automation, consumer electronics, and medical devices for indication purposes. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Orange |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 5mA |
| Viewing Angle | 120° |
| Height (Max) | 0.50mm |
| Wavelength - Peak | 621nm |
| Wavelength - Dominant | 616nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
