91-21VGC/S556/S68/TR10/S370
LED GREEN-YELLOW CLEAR ZBEND SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

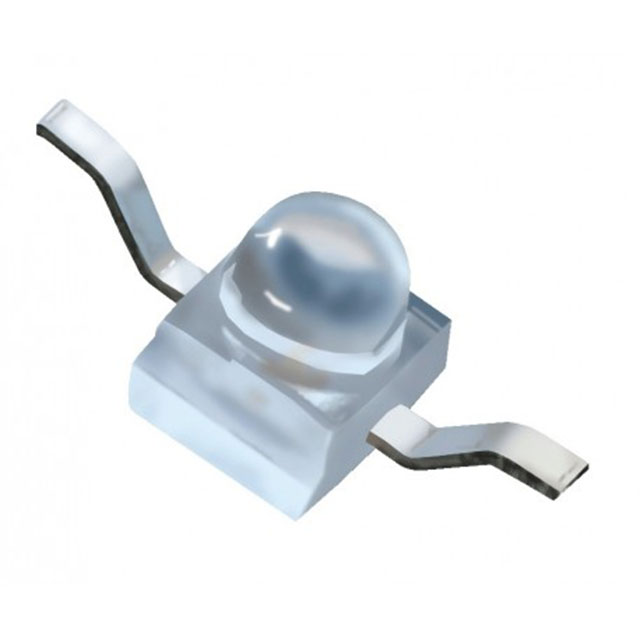

Everlight Electronics Co Ltd 91-21VGC-S556-S68-TR10-S370 is a discrete Green-Yellow LED designed for surface mount applications. This component features a 2-SMD, Z-Bend package with a clear, colorless lens and a domed top, providing a 25° viewing angle. Operating at a forward voltage of 2.05V and driven by a test current of 10mA, it achieves a typical luminous intensity of 16mcd. The dominant wavelength is 571nm, with a peak wavelength of 570nm, suitable for various indication purposes. The dimensions are 2.50mm L x 2.00mm W, with a maximum height of 2.90mm. This LED is supplied in tape and reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Green-Yellow |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 16mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 25° |
| Height (Max) | 2.90mm |
| Wavelength - Peak | 570nm |
| Wavelength - Dominant | 571nm |
| Supplier Device Package | Z-Bend |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
