67-21/QK2C-B56702C4CB2/2T
LED COOL WHITE DIFF 2PLCC SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

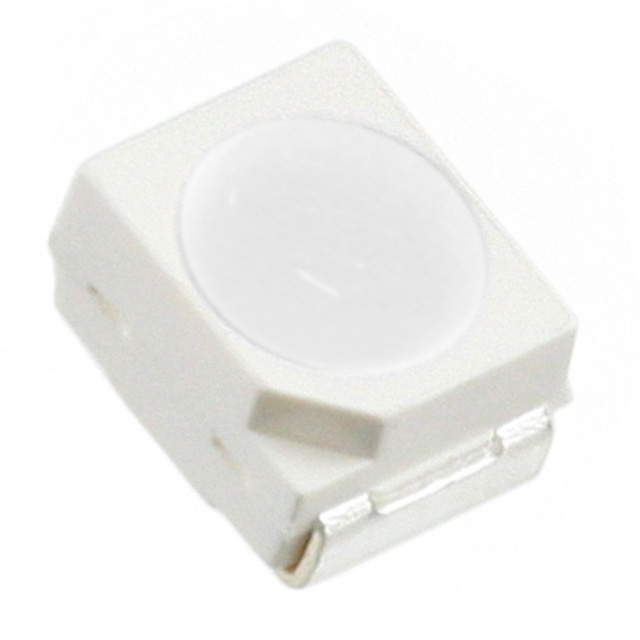

Everlight Electronics Co Ltd 67-21-QK2C-B56702C4CB2-2T is a cool white diffused LED with a color temperature range of 5650K to 7000K. This discrete LED is packaged in a 2-PLCC surface mount configuration, measuring 3.20mm L x 2.80mm W with a maximum height of 2.10mm. It features a 2.40mm diameter round lens with a flat top and diffused output. Tested at 20mA, it provides a typical luminous intensity of 2200mcd with a forward voltage of 3.25V. The viewing angle is 120°. This component is supplied on tape and reel and is suitable for various indication applications across industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White, Cool |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5650K ~ 7000K |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
