67-21/LK2C-B56704C6CB2/2T
LED COOL WHITE DIFF 2PLCC SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

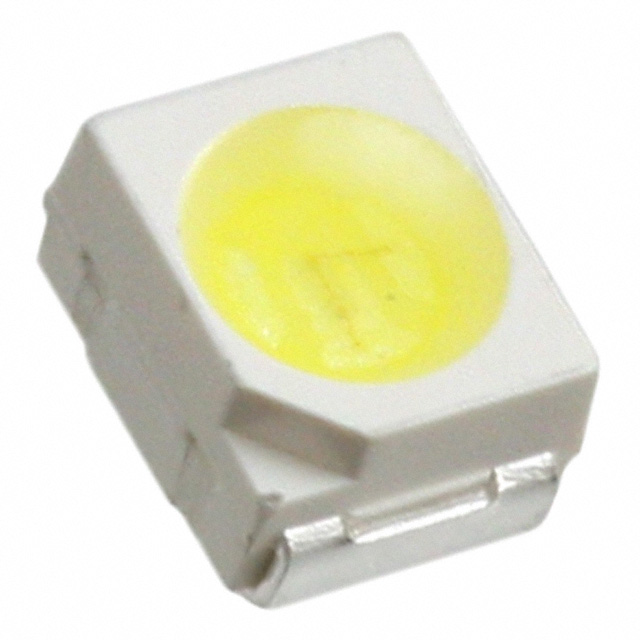

Everlight Electronics Co Ltd 67-21-LK2C-B56704C6CB2-2T is a cool white, diffused LED with a color temperature range of 5650K to 7000K. This discrete indicator component is supplied in a 2-PLCC surface-mount package and measures 3.20mm L x 2.80mm W. It operates with a typical forward voltage of 3.25V and a test current of 20mA, producing a luminous intensity of 2400mcd. The diffused lens, with a diameter of 2.40mm, contributes to a wide viewing angle of 120°. This component is commonly utilized in industrial automation, consumer electronics, and general lighting applications. It is provided in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | White, Cool |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2400mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5650K ~ 7000K |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
