45-21/QK2C-B56702C4CB41/2T
LED COOL WHITE DIFF 2PLCC SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

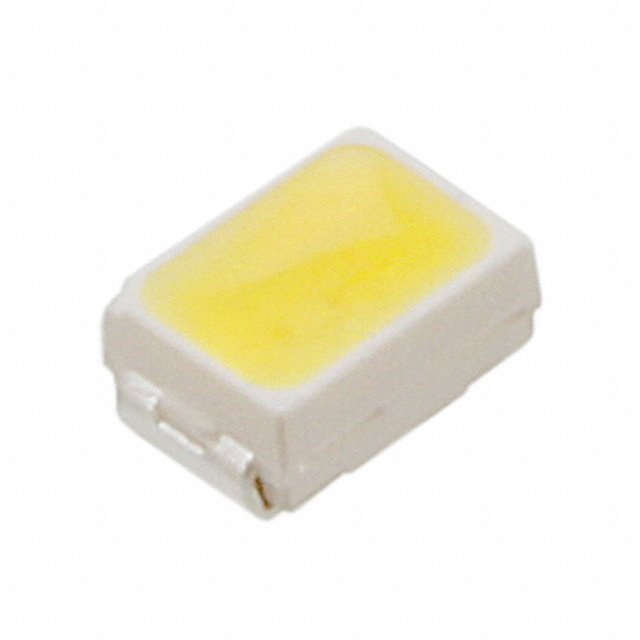

Everlight Electronics Co Ltd 45-21-QK2C-B56702C4CB41-2T is a cool white LED for indication applications. This discrete component features a 2-SMD, J-Lead package with a diffused lens style, providing a 120° viewing angle. Operating at a typical forward voltage of 3.15V and a test current of 20mA, it achieves a millicandela rating of 2200mcd. The color temperature ranges from 5650K to 7000K. The LED measures 2.70mm L x 2.00mm W with a maximum height of 1.30mm. This component is commonly utilized in industrial automation, consumer electronics, and automotive lighting systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | White, Cool |
| Size / Dimension | 2.70mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.15V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5650K ~ 7000K |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
