45-21/QK2C-B2832AC2CB2/2T
LED WARM WHITE DIFF 2PLCC SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

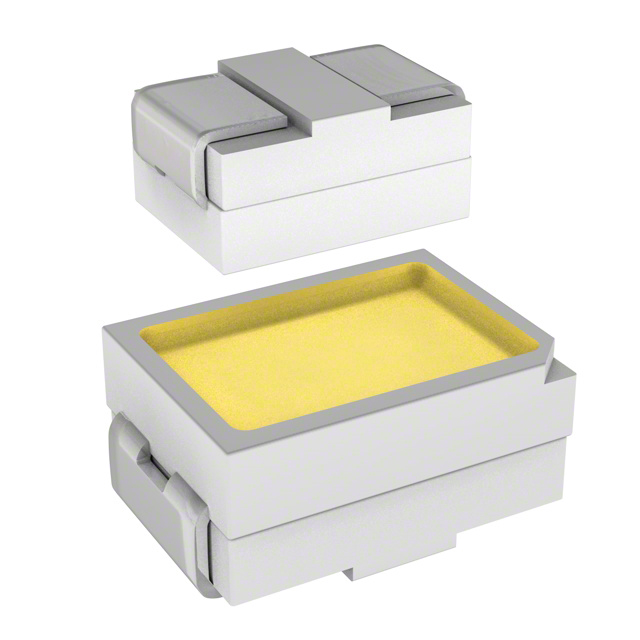

The Everlight Electronics Co Ltd 45-21-QK2C-B2832AC2CB2-2T is a warm white diffused LED designed for surface mount applications. This discrete indicator component features a color temperature range of 2850K to 3250K and delivers a typical luminous intensity of 2000mcd at 20mA forward current. The LED is housed in a 2-PLCC package with a 2-SMD, J-Lead footprint, measuring 2.70mm in length and 2.00mm in width, with a maximum height of 1.30mm. Its diffused lens style is a rectangle with a flat top, providing a 120° viewing angle. This component is commonly utilized in industrial automation, consumer electronics, and medical device applications requiring clear visual indication. The device is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | White, Warm |
| Size / Dimension | 2.70mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.25V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 2850K ~ 3250K |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
