3474AN-R7DB-AHJB-PR-MS

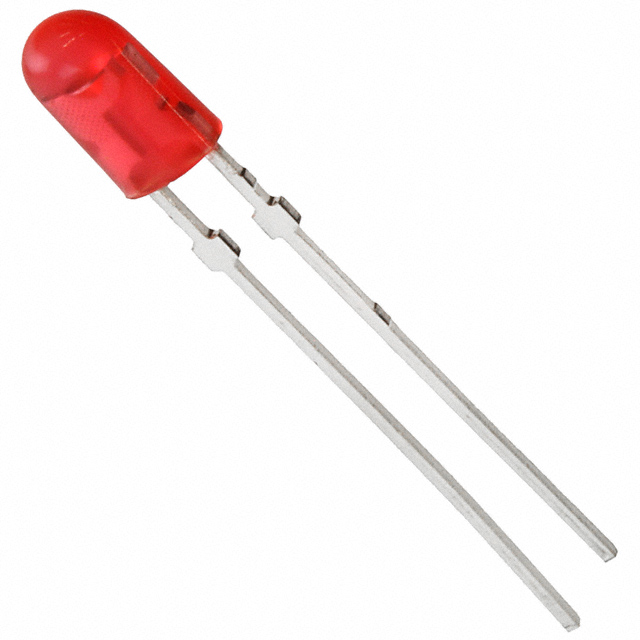

LED RED DIFFUSED RADIAL LEAD T/HManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More
Everlight Electronics Co Ltd 3474AN-R7DB-AHJB-PR-MS is a red diffused radial lead through-hole LED designed for indication applications. This component features a dominant wavelength of 624nm and a peak wavelength of 632nm, with a typical forward voltage of 2.2V at 20mA test current. The diffused lens provides a wide viewing angle of 110° and 45°, emitting a luminous intensity of 1630mcd. The LED is packaged in a radial lead configuration, supplied in cut tape. Its applications span industrial automation, consumer electronics, and lighting systems requiring clear visual feedback.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1630mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 110°, 45° |
| Height (Max) | 10.50mm |
| Wavelength - Peak | 632nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | Radial Lead |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | 3.95mm x 3.00mm |
