334-15/X2C5-1MQA
LED WARM WHITE CLEAR T-1 3/4 T/HManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

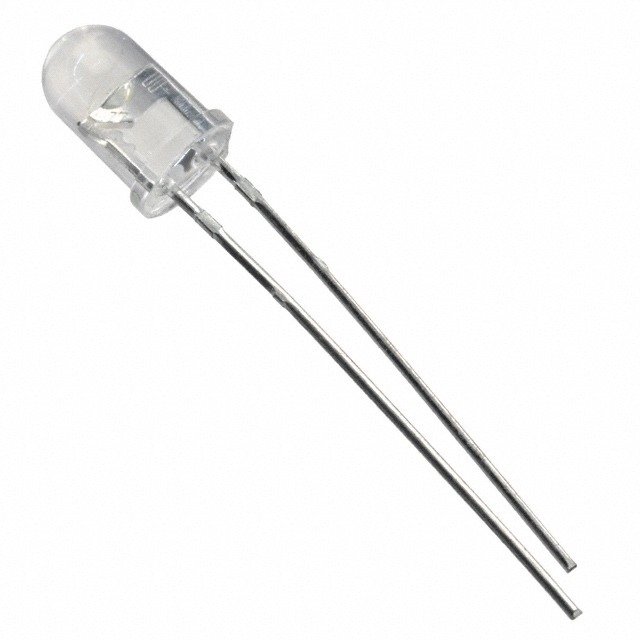

The Everlight Electronics Co Ltd 334-15-X2C5-1MQA is a warm white, clear, T-1 3/4 through-hole LED designed for discrete indication applications. Featuring a standard configuration, this component operates with a typical forward voltage of 3.2V and a test current of 20mA, delivering a luminous intensity of 3150mcd. The radial package houses a clear, colorless domed top lens with a 50° viewing angle. This LED is suitable for use in industrial automation, consumer electronics, and medical equipment where reliable visual feedback is critical. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Warm |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 8.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
