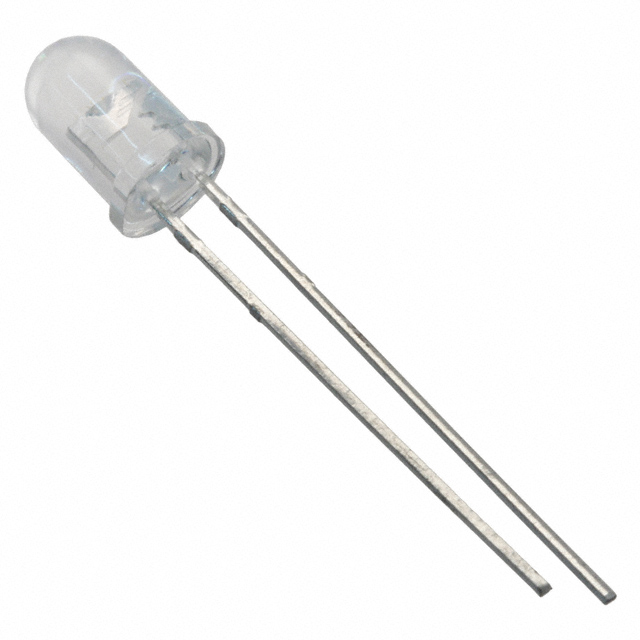

334-15/T2C5-1MQA
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More
Everlight Electronics Co Ltd's 334-15-T2C5-1MQA is a through-hole mounted, white LED designed for discrete indication applications. This T-1 3/4 package features a clear, colorless lens with a domed top, providing a 50° viewing angle. Operating at a typical forward voltage of 3.2V, the component delivers a luminous intensity of 3150 millicandela at a test current of 20mA. Commonly employed in industrial automation, consumer electronics, and medical equipment, this component offers reliable visual feedback. The radial package is supplied in bulk for efficient integration into high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 3150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 8.90mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
