19-217UTD/S759/TR8
LED WHITE DIFFUSED 2SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

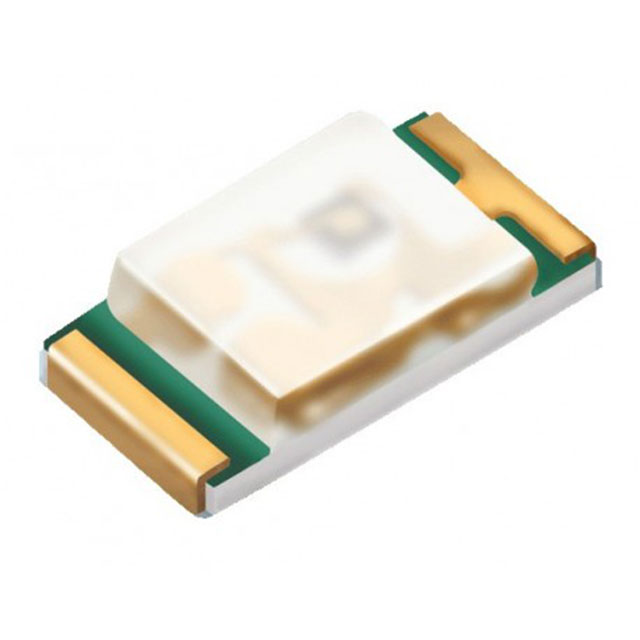

The Everlight Electronics Co Ltd 19-217UTD-S759-TR8 is a white diffused LED designed for surface mounting within a 0603 (1608 Metric) package. This discrete LED offers a typical forward voltage of 2.9V and is specified for operation at 5mA. Its diffused lens, with a yellow tint, provides a wide 130° viewing angle. The component measures 1.60mm in length and 0.80mm in width, with a maximum height of 0.50mm. This LED is supplied on a Tape & Reel (TR) for automated assembly processes. It is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | Yellow |
| Current - Test | 5mA |
| Viewing Angle | 130° |
| Height (Max) | 0.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
