19-117Z/T1D-CN1P2B3X/3T
LED WHITE DIFFUSED 2SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

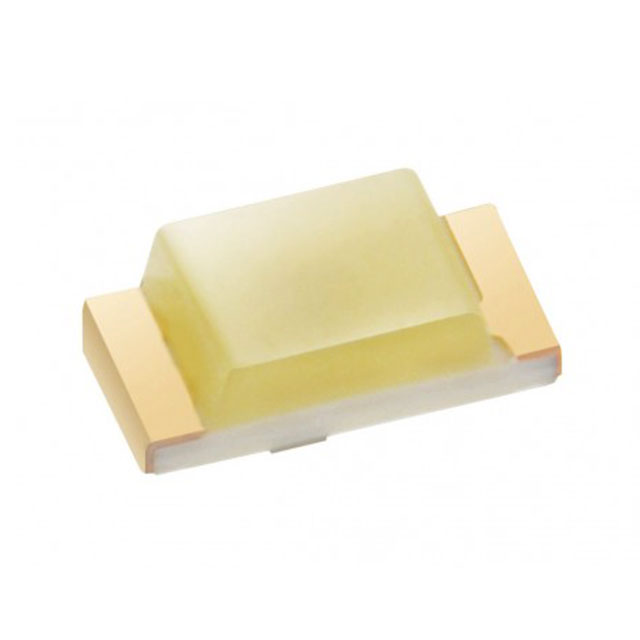

Everlight Electronics Co Ltd 19-117Z-T1D-CN1P2B3X-3T is a white diffused LED designed for surface mount applications. This component, packaged in a 0603 (1608 Metric) 2-SMD format, features a standard configuration with a forward voltage of 2.7V at a test current of 2mA. The LED offers a wide viewing angle of 130° with a diffused lens for uniform light output. Its compact dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.45mm make it suitable for space-constrained designs in consumer electronics, industrial control systems, and automotive applications. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.7V |
| Lens Color | Yellow |
| Current - Test | 2mA |
| Viewing Angle | 130° |
| Height (Max) | 0.45mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
