17-21SYGC/S530-E2/TR8
LED YLW-GRN CLEAR 0805 SMDManufacturer: Everlight Electronics Co Ltd
Categories: LED Indication - Discrete
Quality Control: Learn More

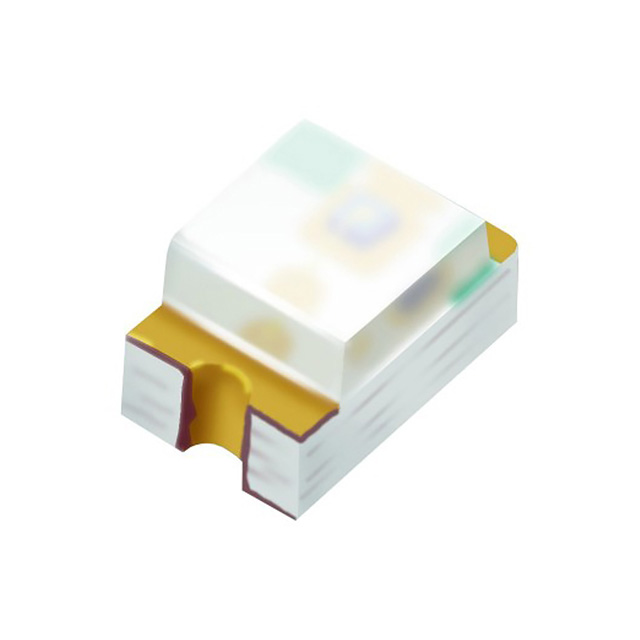

Everlight Electronics Co Ltd's 17-21SYGC-S530-E2-TR8 is a Yellow-Green, clear lens, 0805 (2012 Metric) surface mount LED with a typical forward voltage of 2V and a dominant wavelength of 573nm. This discrete indicator features a 140° viewing angle and a millicandela rating of 23mcd at a test current of 20mA. The component measures 2.00mm L x 1.25mm W with a height of 1.00mm (Max). Supplied in Tape & Reel (TR) packaging, this LED finds application in general indication within the automotive and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Yellow-Green |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 23mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 575nm |
| Wavelength - Dominant | 573nm |
| Supplier Device Package | 0805 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
