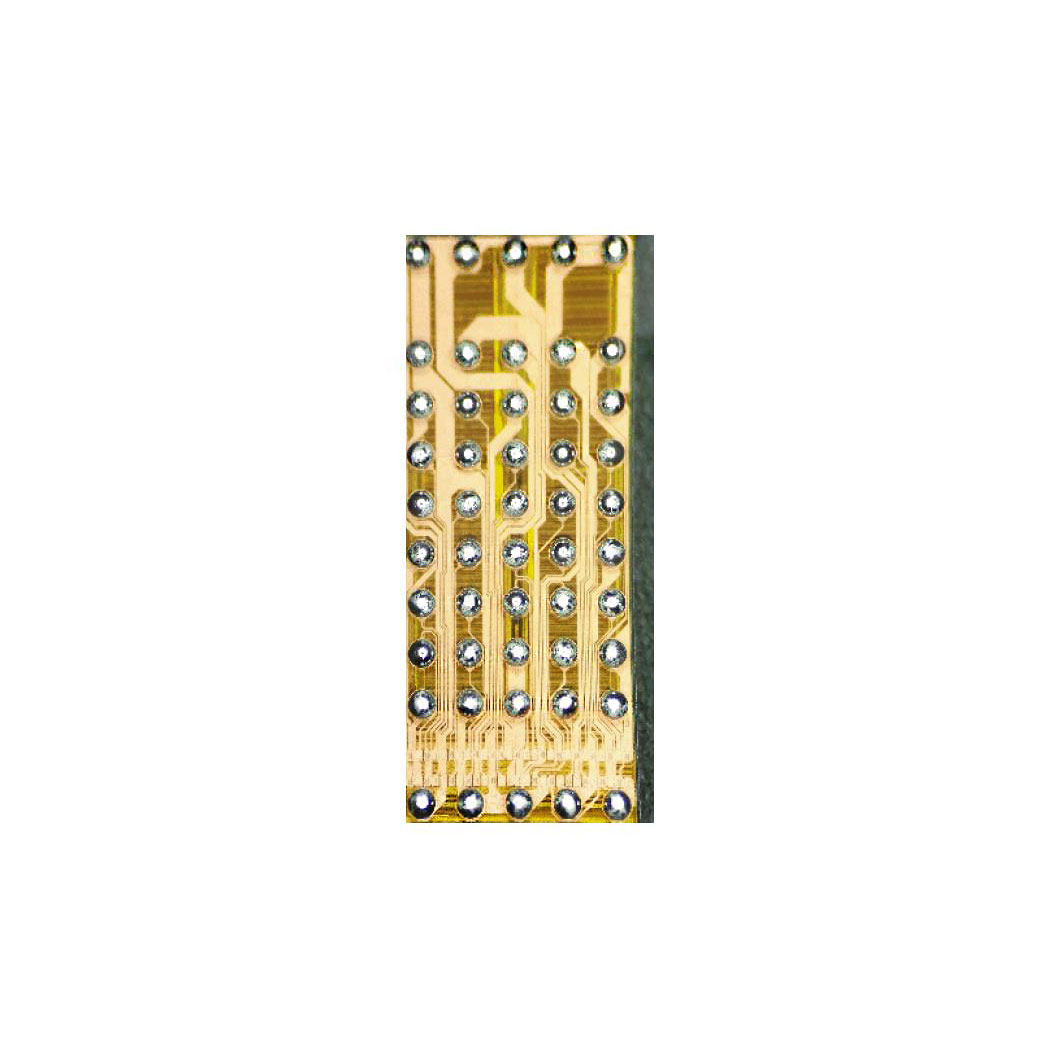

EM6GA16LCAEA-12H
IC DRAM 256MBIT PAR 50WLCSPManufacturer: Etron Technology, Inc.
Categories: Memory
Quality Control: Learn More
Etron Technology, Inc. offers the EM6GA16LCAEA-12H, a 256Mbit DRAM memory component. This volatile memory features a 16M x 16 organization and operates with a parallel interface. The component boasts an 800 MHz clock frequency and a fast 6 ns access time, with a word/page write cycle time of 15 ns. It operates within a 1.425V to 1.575V supply voltage range and is housed in a compact 50-WLCSP package (1.96x4.63 mm). Operating temperature is specified from 0°C to 85°C (TC). Applications for this memory component are found in consumer electronics, industrial automation, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 50-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | 256Mbit |
| Memory Type | Volatile |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Voltage - Supply | 1.425V ~ 1.575V |
| Technology | DRAM-RPC |
| Clock Frequency | 800 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 50-WLCSP (1.96x4.63) |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 6 ns |
| Memory Organization | 16M x 16 |
| Programmable | Not Verified |
