EPC300-CSP4-001
SENSOR PHOTODIODE 850NM 4XFBGAManufacturer: ESPROS Photonics AG
Categories: Photodiodes
Quality Control: Learn More
ESPROS Photonics AG EPC300-CSP4-001 is a photodiode designed for infrared detection. This surface mount component features a 4-XFBGA, CSPBGA package with an active area of 0.86mm². It operates within a spectral range of 400nm to 1030nm, with peak responsivity at 0.6 A/W at 850nm. The dark current is a typical 80pA, and the device supports a reverse voltage up to 20V. With a response time of 300ns and a wide viewing angle of 150°, this photodiode is suitable for applications in industrial automation, medical sensing, and optical communication. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, CSPBGA |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | 300ns |
| Viewing Angle | 150° |
| Spectral Range | 400nm ~ 1030nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 0.6 A/W @ 850nm |
| Active Area | 0.86mm² |
| Current - Dark (Typ) | 80pA |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
Request a Quote
Clients Also Buy
EPC330-CSP32-001
SENSOR PHOTODIODE 850NM 32XFBGA

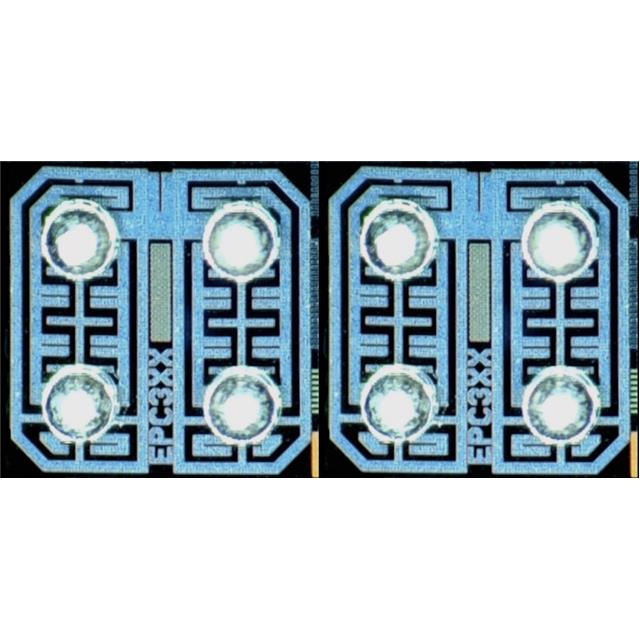

EPC310-CSP8-001
