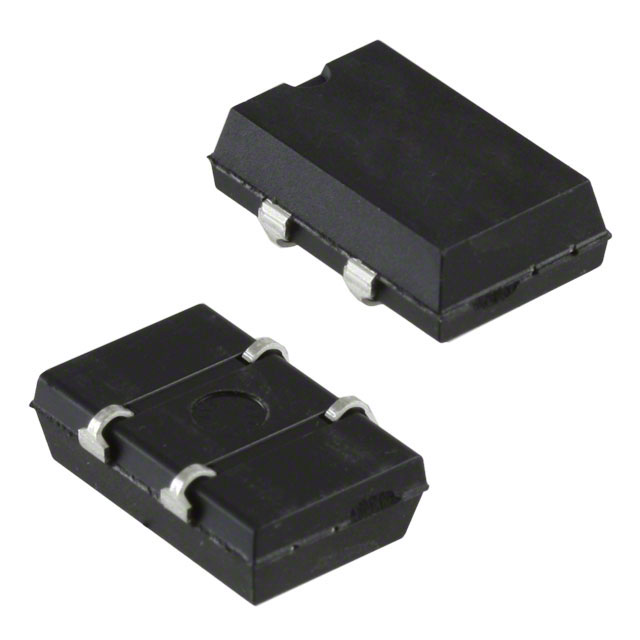

SG-615P 1.5440MC0:ROHS
XTAL OSC XO 1.5440MHZ CMOS TTLManufacturer: EPSON
Categories: Oscillators
Quality Control: Learn More
EPSON SG-615 Series crystal oscillator, part number SG-615P-1-5440MC0-ROHS. This 1.544 MHz XO features CMOS and TTL compatible output and operates from a 5V supply. The oscillator includes an Enable/Disable function. Packaged in a 4-SOJ with a 5.08mm pitch, it offers a frequency stability of ±100ppm over an operating temperature range of -20°C to 70°C. The device dimensions are 14.00mm x 8.65mm with a maximum seated height of 4.70mm. This component is commonly utilized in industrial and consumer electronics applications. Supplied on Tape & Reel (TR).
Additional Information
Series: SG-615RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SOJ, 5.08mm pitch |
| Size / Dimension | 0.551"" L x 0.341"" W (14.00mm x 8.65mm) |
| Mounting Type | Surface Mount |
| Output | CMOS, TTL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±100ppm |
| Voltage - Supply | 5V |
| Ratings | - |
| Current - Supply (Max) | 23mA |
| Supplier Device Package | 4-SOJ |
| Height - Seated (Max) | 0.185"" (4.70mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 1.544 MHz |
| Base Resonator | Crystal |
