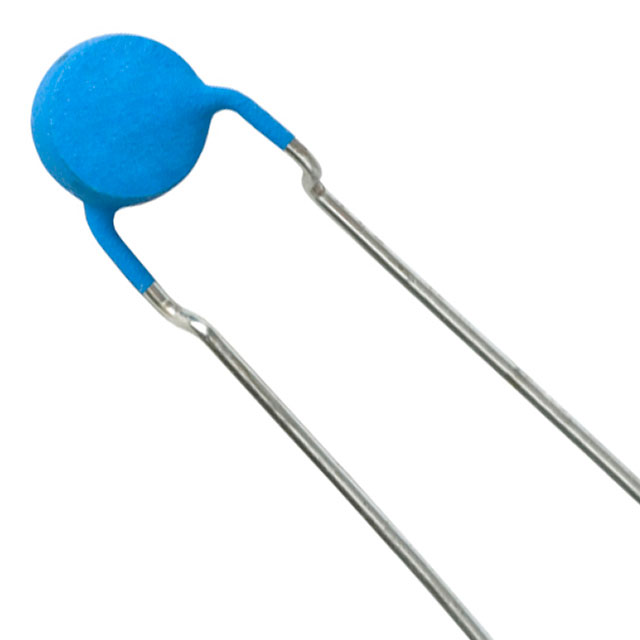

B59880C0120A070
PTC RESET FUSE 265V 55MA RADIALManufacturer: EPCOS - TDK Electronics
Categories: PTC Resettable Fuses
Quality Control: Learn More
Ceramic PTC Resettable Fuse 265V 55 mA Ih Through Hole Radial, Disc
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.354"" Dia x 0.197"" T (9.00mm x 5.00mm) |
| Mounting Type | Through Hole |
| Type | Ceramic |
| Operating Temperature | 0°C ~ 60°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 55 mA |
| Current - Trip (It) | 110 mA |
| Voltage - Max | 265V |
| Ratings | - |
| Height - Seated (Max) | 0.492"" (12.50mm) |
| Thickness (Max) | - |
| Current - Max | 400 mA |
| Resistance - 25°C (Typ) | 70 Ohms |
