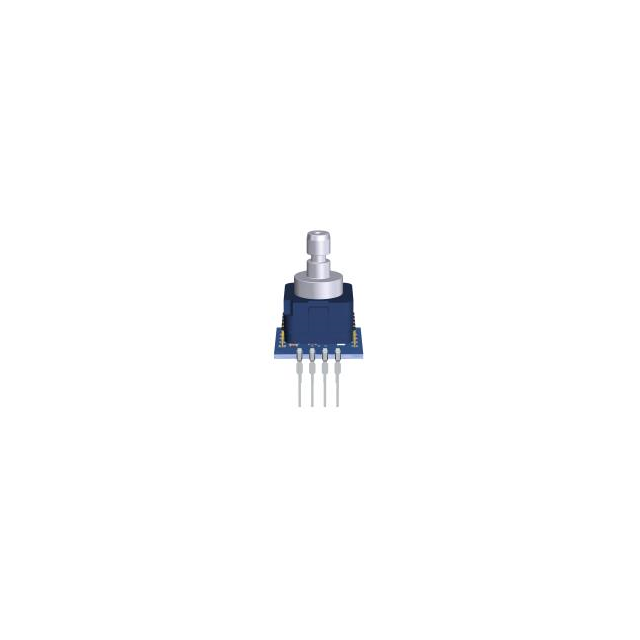

B58623K1110A060
SENSOR 5.8PSIS M5 4.5VManufacturer: EPCOS - TDK Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 5.8PSI (40kPa) Sealed Gauge Male - M5 0.5 V ~ 4.5 V 8-DIP Module
Additional Information
Series: AC-TRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 5.8PSI (40kPa) |
| Pressure Type | Sealed Gauge |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.5V |
| Port Size | Male - M5 |
| Applications | Board Mount |
| Port Style | Threaded |
| Maximum Pressure | 8.70PSI (60kPa) |
Request a Quote
Clients Also Buy

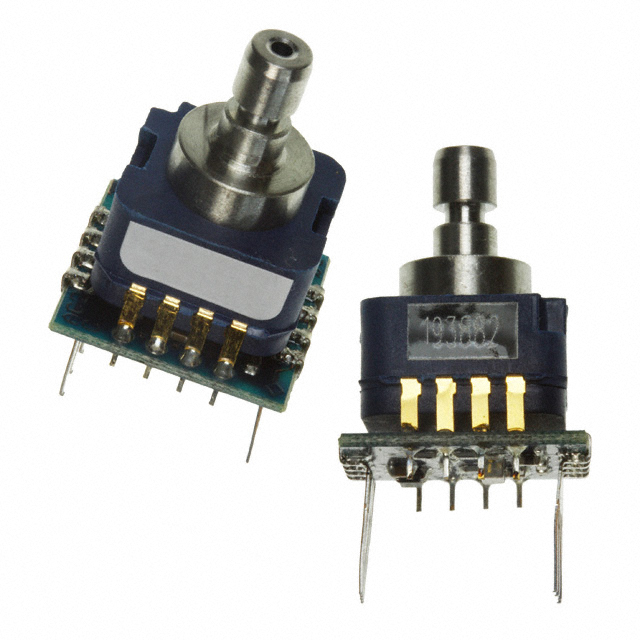

B58621K1110A054
