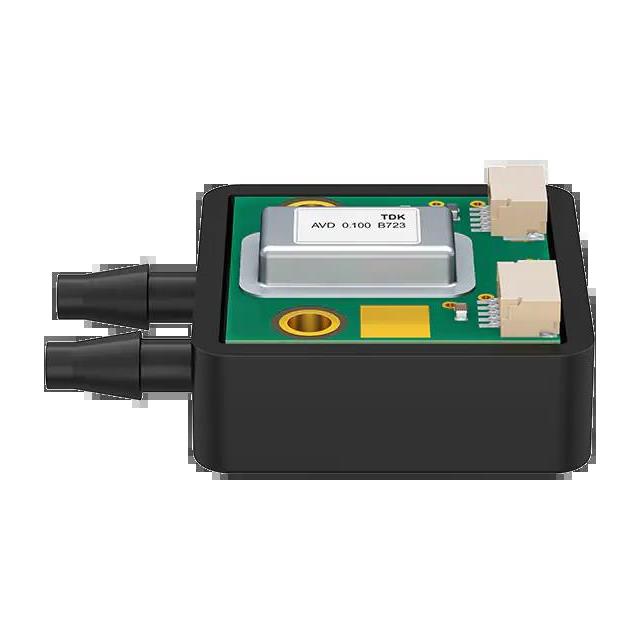

B58621V2712B766
SENSOR 1.45PSID 0.2"" 14BITManufacturer: EPCOS - TDK Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
EPCOS - TDK Electronics B58621V2712B766 is a differential and gauge pressure sensor module designed for board mounting applications. This component offers a precise 1.45 PSI (10 kPa) operating pressure range with a maximum pressure rating of 14.5 PSI (100 kPa). It features temperature compensation for enhanced accuracy, rated at ±0.45%. The sensor outputs data via a 14-bit digital interface utilizing the I2C protocol. Connectivity is established through a dual 0.2" (5mm) barbed tube port. Operating within a temperature range of -20°C to 70°C, this device supports supply voltages from 2.7V to 5.5V. It finds application in industries such as industrial automation and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | I2C |
| Output | 14 b |
| Operating Pressure | 1.45PSI (10kPa) |
| Pressure Type | Differential, Gauge |
| Accuracy | ±0.45% |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Termination Style | - |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.2"" (5mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 14.5PSI (100kPa) |
