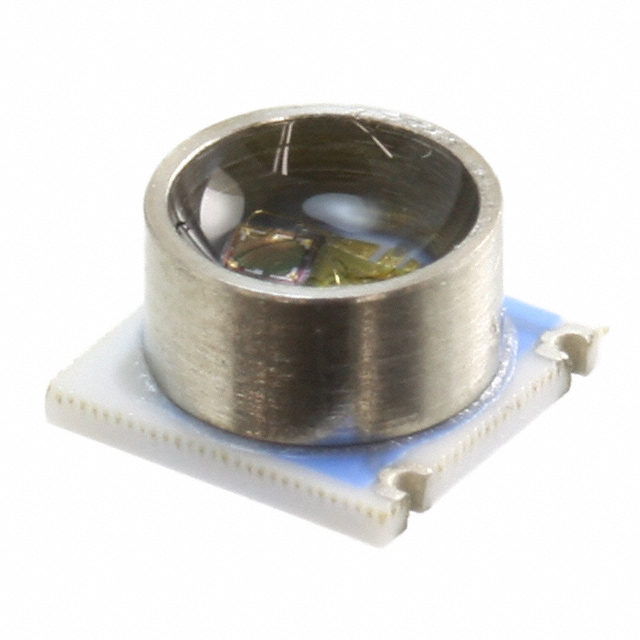

B58620S3300B360
SENSOR 17.4PSIA 0.15"" 4.5VManufacturer: EPCOS - TDK Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
EPCOS - TDK Electronics ASB series absolute pressure sensor, part number B58620S3300B360. This 4-SMD module is designed for surface mounting and features a barbless, male 0.15" (3.8mm) port. It operates within an absolute pressure range of 2.9 PSI to 17.4 PSI (20 kPa to 120 kPa) and provides an analog voltage output from 0.5V to 4.5V. The device operates from a supply voltage of 2.7V to 5.5V and maintains an operating temperature range of -45°C to 85°C. With ±3% accuracy and temperature compensation, this component is suitable for board-mount applications in industries such as automotive and industrial automation. The B58620S3300B360 is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: ASBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.5V ~ 4.5V |
| Operating Pressure | 2.9PSI ~ 17.4PSI (20kPa ~ 120kPa) |
| Pressure Type | Absolute |
| Accuracy | ±3% |
| Operating Temperature | -45°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.15"" (3.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 5.8PSI ~ 34.81PSI (40kPa ~ 240kPa) |
Request a Quote
Clients Also Buy
B58621K0510A012
PRESSURE SENSOR AUR 10.00 KC V4

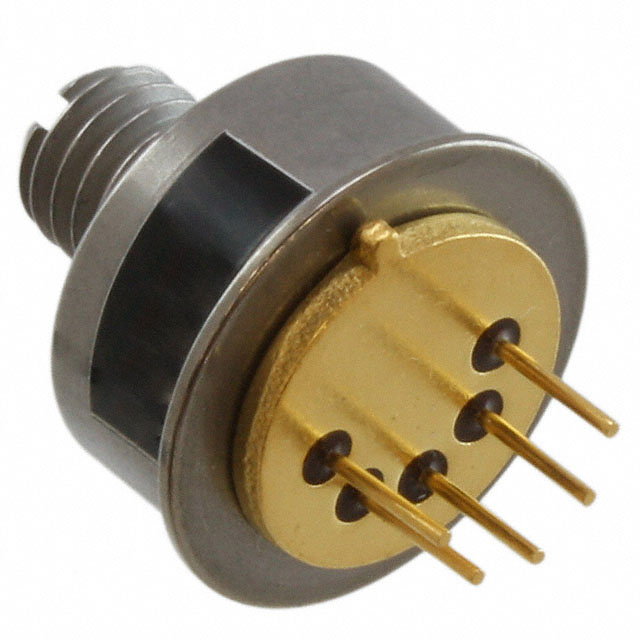

B58610T4600A007
