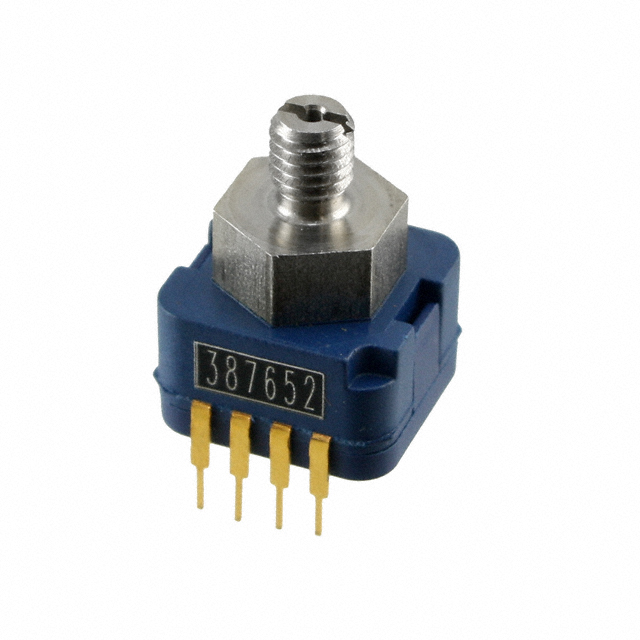

B58611K1500A015
SENSOR 145.04PSIG M5 .12VManufacturer: EPCOS - TDK Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 145.04PSI (1000kPa) Vented Gauge Male - M5 0 mV ~ 120 mV (5V) 8-DIP Module
Additional Information
Series: AK2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 120 mV (5V) |
| Operating Pressure | 145.04PSI (1000kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -30°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 10V |
| Port Size | Male - M5 |
| Applications | Board Mount |
| Port Style | Threaded |
| Maximum Pressure | 543.89PSI (3750kPa) |
