B58600E3914B637
SENSOR 17.4PSIA .015V DIEManufacturer: EPCOS - TDK Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

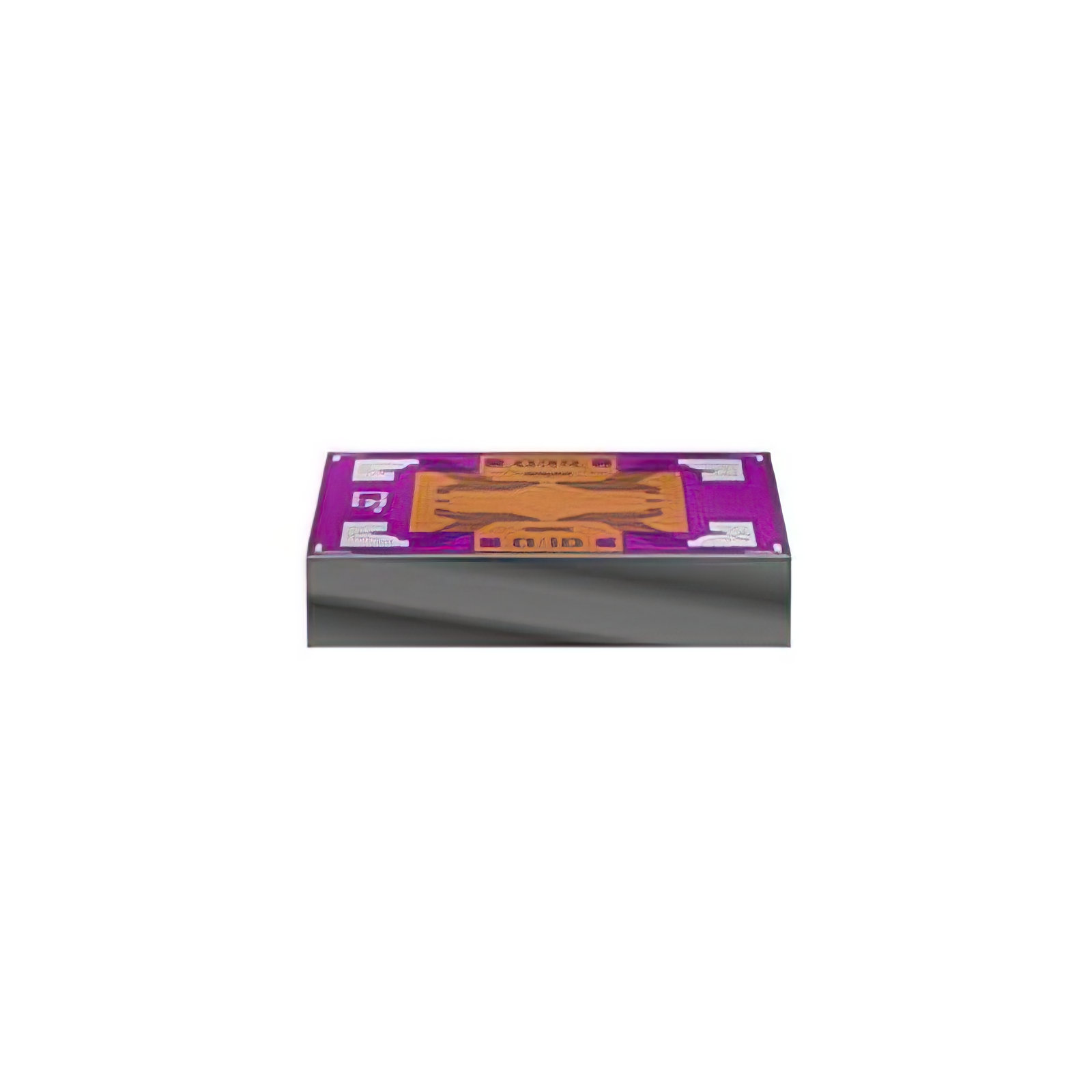

EPCOS - TDK Electronics' B58600E3914B637 is an absolute pressure sensor from the C39 series, supplied as a bare die. This sensor is engineered for applications requiring precise pressure measurement with an operating pressure range of 17.4 PSI (120 kPa) and a maximum pressure rating of 43.51 PSI (300 kPa). The output is provided as a Wheatstone bridge, delivering a voltage range of 0 mV to 15 mV when supplied with 5V, over a wide operating temperature range of -40°C to 135°C. The device offers ±0.1% accuracy and is suitable for integration into systems across automotive, industrial, and consumer electronics sectors. The B58600E3914B637 is designed for surface-mount termination via tabs and operates with a supply voltage between 1V and 6V.
Additional Information
Series: C39RoHS Status: ROHS3 CompliantManufacturer Lead Time: 55 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Die |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 15 mV (5V) |
| Operating Pressure | 17.4PSI (120kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 135°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1V ~ 6V |
| Port Size | - |
| Supplier Device Package | Die |
| Port Style | No Port |
| Maximum Pressure | 43.51PSI (300kPa) |
