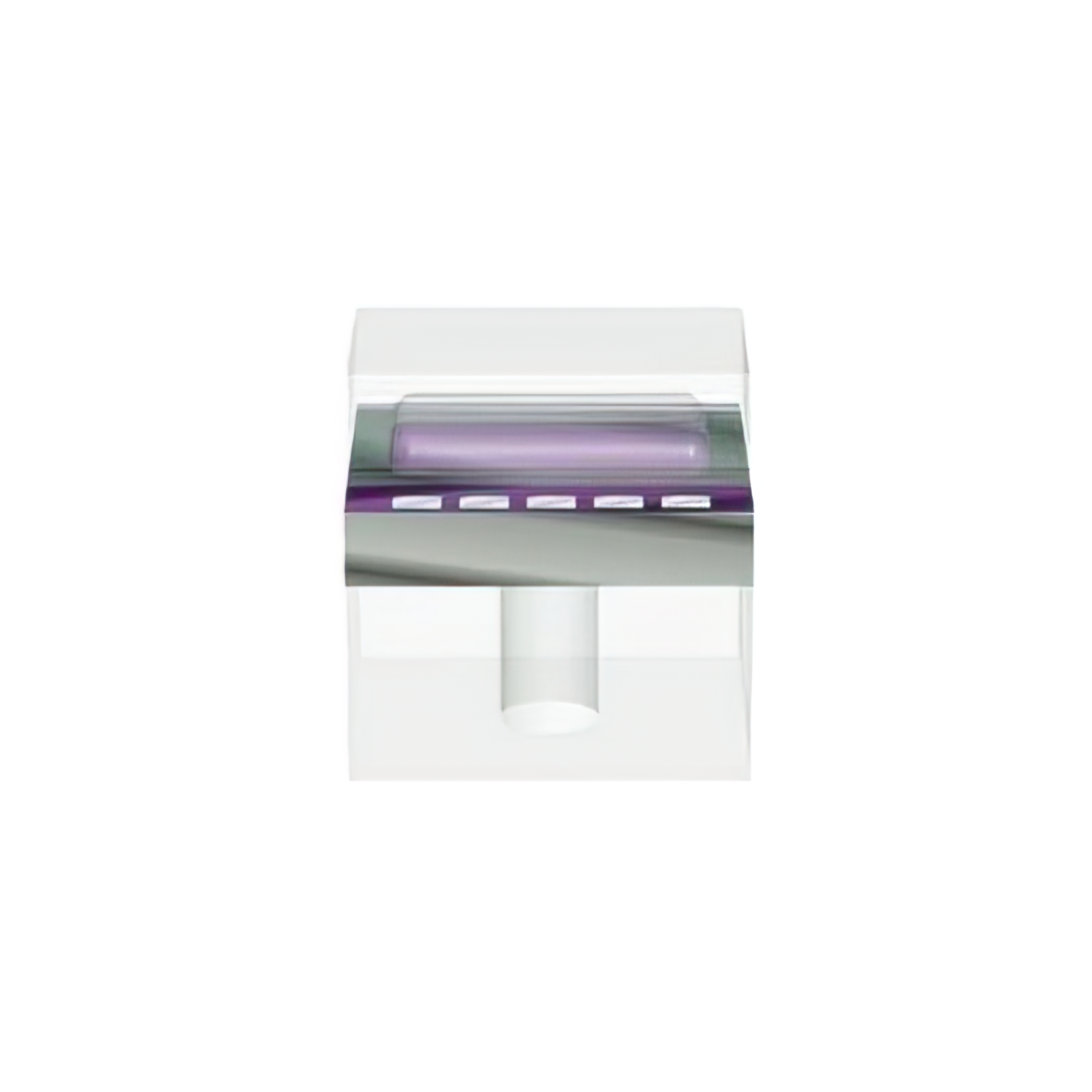

B58600E3815B650
SENSOR 362.6PSIA .12V DIEManufacturer: EPCOS - TDK Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
EPCOS - TDK Electronics C38 series absolute pressure sensor die, part number B58600E3815B650. This component measures pressure in the 145PSI to 362.6PSI (1000kPa to 2500kPa) range. It features a Wheatstone bridge output configuration, providing a signal from 0 mV to 120 mV with a 5V excitation voltage. The sensor operates within a temperature range of -40°C to 135°C and offers an accuracy of ±0.3%. Designed for advanced applications, this die is suitable for board mounting and is supplied in a tray. Its robust construction and precise measurement capabilities make it ideal for demanding industrial and automotive environments where accurate pressure sensing is critical.
Additional Information
Series: C38RoHS Status: ROHS3 CompliantManufacturer Lead Time: 55 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | Die |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 120 mV (5V) |
| Operating Pressure | 145PSI ~ 362.6PSI (1000kPa ~ 2500kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.3% |
| Operating Temperature | -40°C ~ 135°C |
| Termination Style | - |
| Voltage - Supply | 1V ~ 5V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | Die |
| Port Style | No Port |
| Maximum Pressure | - |
Request a Quote
Clients Also Buy

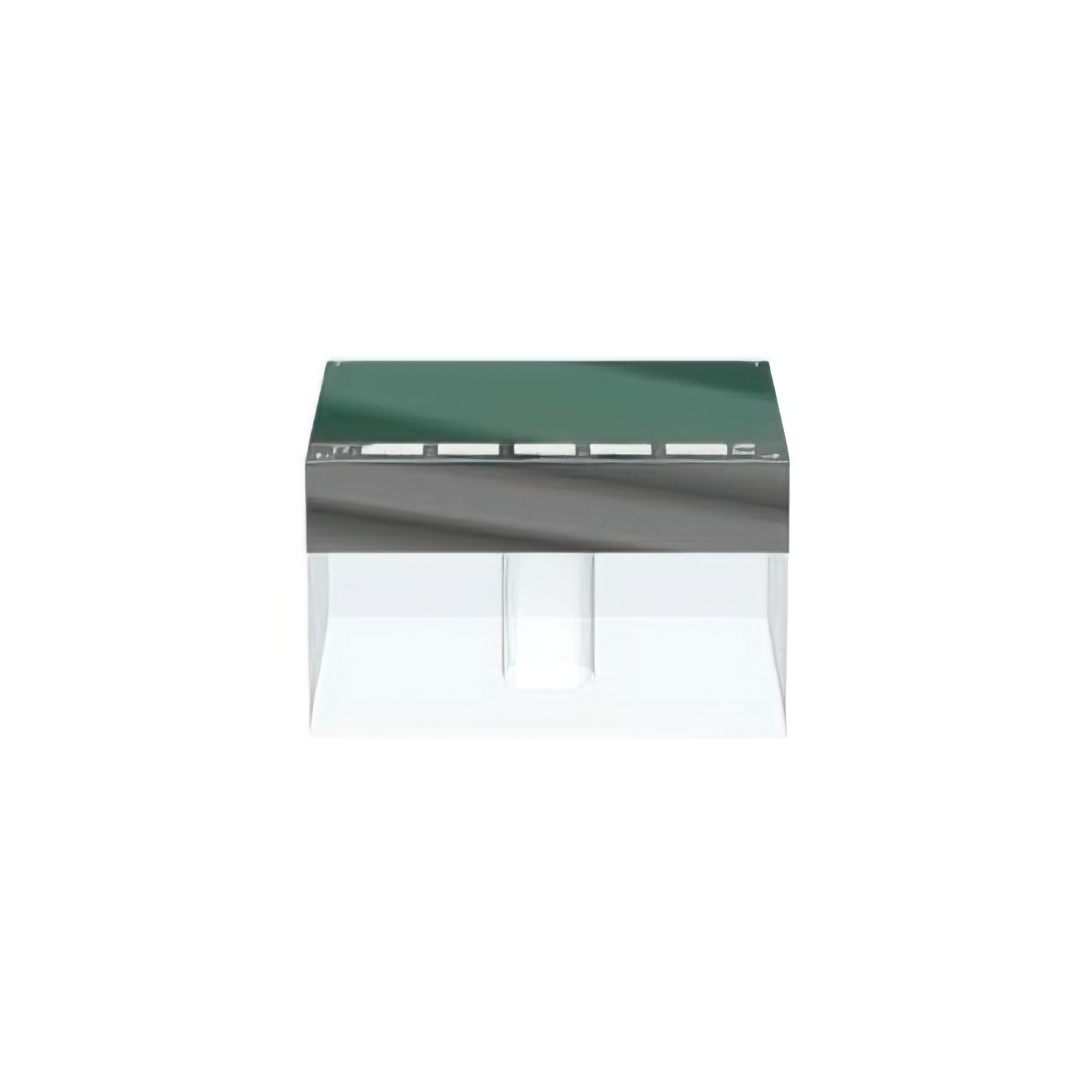

B58601E3815B650
